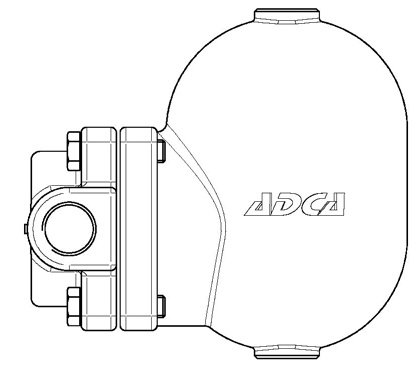

Конденсатоотводчик поплавковый FLT17HC-4,5-025 1" р/р dP=4,5 PN16 GGG 40 (пов. Kvs)

FLT17-HC Float steam trap (increased Kvs) PN16 Corp./cover/GJS-400-15 (GGG 40)

FLT17HC - a condensate trap with a spherical float and a built-in thermostatic valve (for removing air and other non-condensable gases). Designed for medium and high pressure systems. Typical applications are heat exchange equipment, steam jacket tanks and other applications with continuous condensate discharge.

Specifications:
Constant condensate drainage. Condensate is discharged at saturation temperature. It is not affected by sudden changes in loads and pressure drop.
The default installation is on a horizontal pipeline, the flow direction is from left to right when viewed on the housing - FLT17HC (L-R)

Delivery is possible under the order:

• installation on a horizontal pipeline, for example
