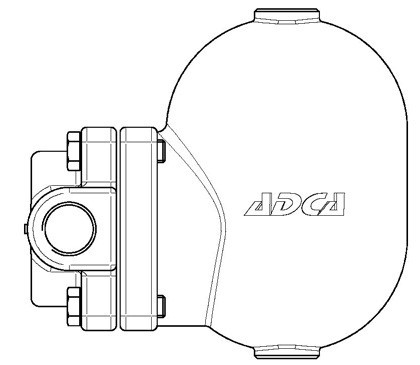

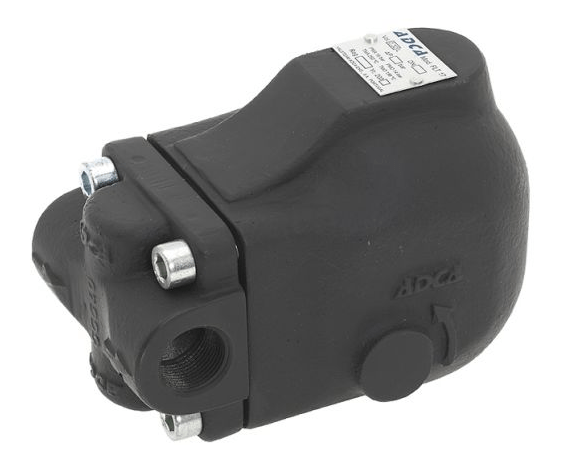

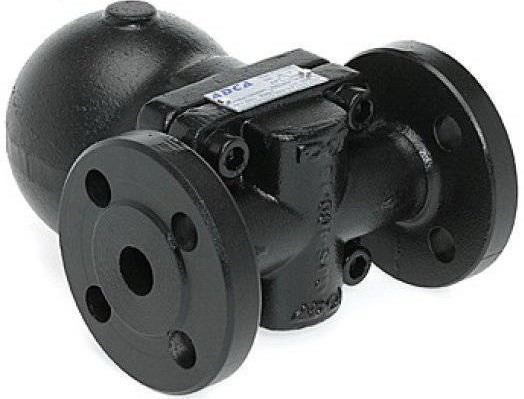

Float condensate trap FLT32-HC SERIES PN40 housing and cover material: GP240 GH (1” FLT32-4.5HC R/r ugler.steel dP=4.5)

FLT32HC - a condensate trap with a spherical float and a built-in thermostatic valve (for removing air and other non-condensable gases). Designed for medium and high pressure systems. Typical applications are heat exchange equipment, steam jacket tanks and other applications with continuous condensate discharge.

Specifications:
Constant condensate drainage. Condensate is discharged at saturation temperature. It is not affected by sudden changes in loads and pressure drop.
The default installation is on a horizontal pipeline, the flow direction is from left to right when viewed on the housing - FLT32HC (L-R)
Delivery is possible under the order:

• installation on a horizontal pipeline, flow direction from right to left (R-L)
• installation on a vertical pipeline, flow direction from top to bottom (V)
