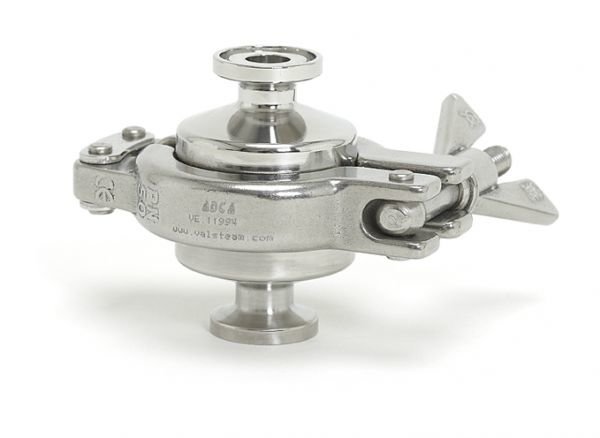

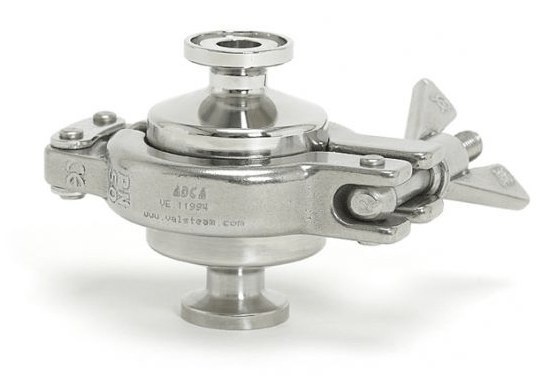

The condensate drain (erased.pairs) ADCA series TSS6/TSS7

Description:
Steam traps TSS6/TSS7 They are made entirely of stainless steel and can be used as an air vent in steam systems. This model is specially designed for drainage of mains or condensate drainage from heat exchange equipment for those systems that use clean (sterile) steam.

Specifications:
Continuous condensate drainage.
Various connection standards.
Air extraction.
Simple and compact design.

PMA - Maximum allowable pressure - 10 bar
TMA - Maximum permissible temperature - 177°
PMO - Maximum operating pressure - 6 bar
TMO - Maximum operating temperature - 165°

Wednesday: saturated steam
