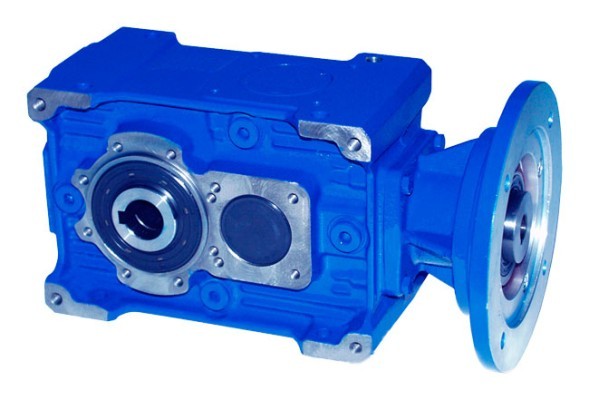

Angular conical-cylindrical gearboxes series RXO 700 (axes are located in the same plane) and RXV 700 (axes in perpendicular planes) from the company STM These are high-tech and reliable mechanical transmissions for performing a wide range of industrial tasks. The model range consisting of five overall dimensions is represented by one-, two- and three-stage versions, a wide range of available operating parameters.
The monolithic body is made of cast iron (for all sizes) and, due to the absence of component parts, has high rigidity as opposed to high loads. The internal structure of the gearbox is designed in such a way as to optimize the circulation of lubricants, reduce noise and ensure the tightness of the structure.
The gearboxes of this series can be equipped with various connection options for easy and optimal integration into the drive system of various profiles.
Technical characteristics of conical cylindrical gearboxes STM series RXO /RXV 700
- The torque: 210.6 - 5075 Nm;
- Transmission ratio: 5,2 - 578,3;
- Input speed range: 500 - 2850 rpm;
- Output speed range: 0.9 - 553.3 rpm;
- Number of gears: 1, 2;
- Mounting design: IN THE B5, IN THE B14;
- Operating temperature range: -20 ... 110 °C.
Parameters of standard sizes of STM gearboxes of the RXP 700 series
Type gearboxes | Ratio transfers | Moment, Nm | Power, kW | Speed, rpm |
single-stage | ||||
RXO1 /RXV1 - 704 | 9,2 - 63,5 | 210,6 - 253,8 | 0,2 - 7,0 | 7,9 - 299,8 |
RXO1 /RXV1 - 708 | 5,2 - 73,2 | 283,9 - 548,1 | 0,4 - 17,3 | 6,8 - 553,3 |
RXO1 /RXV1 - 712 | 5,2 - 73,2 | 457,9 - 1015,0 | 0,8 - 27,9 | 6,8 - 553,3 |
RXO1 /RXV1 - 716 | 5,2 - 75,4 | 915,8 - 2030,0 | 1,5 - 55,8 | 6,6 - 553,3 |
RXO1 /RXV1 - 720 | 7,6 - 72,3 | 3663,2 - 4500,0 | 3,1 - 151,6 | 6,9 - 375,6 |
two-stage | ||||
RXO2 /RXV2 - 708 | 68,5 - 578,3 | 641,1 - 751,1 | 0,1 - 3,0 | 0,9 - 41,6 |
RXO2 /RXV2 - 712 | 60,8 - 571,0 | 1099 - 1421 | 0,1 - 5,8 | 0,9 - 46,9 |
RXO2 /RXV2 - 716 | 61,9 - 561,2 | 2198 - 2842 | 0,3 - 11,4 | 0,9 - 46,0 |
RXO2 /RXV2 - 720 | 46,0 - 569,4 | 3846 - 5075 | 0,5 - 26,8 | 0,9 - 61,9 |
To buy angle reducers and gear motors of the STM RXO /RXV 700 series, you can find out the price and more information about the product by contacting our specialists.
