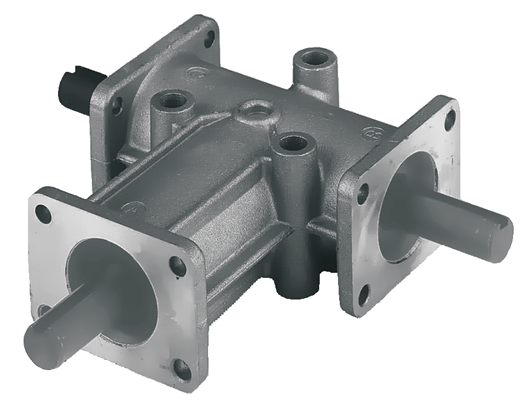

Angular single-stage bevel gearboxes series ZL from the company STM These are high-quality and reliable transmissions for various applications and operating modes. A wide range of operating parameters, a model range of six dimensions, one input for the motor and two outputs for installing the driven equipment, a gear ratio of 1:1 or 1 : 2.
The gearbox housing is made of aluminum and has a monolithic structure, lightweight and silent in operation, five fixing points, three mounting flanges. Gears with Gleason technology clutch are installed.
Technical characteristics of STM series ZL bevel gearboxes
- The torque: 1.1 - 53 Nm;
- Transmission ratio: 1 - 2;
- Input speed range: 500 - 2800 rpm;
- Output speed range: 250 - 2800;
- Number of gears: 1;
- Mounting design: IN B5, IM B14;
- Operating temperature range: -10 ... 60 °C.
Parameters of standard sizes of STM series ZL bevel gearboxes
Type gearboxes | Ratio transfers | Moment, Nm | Power, kW | Speed, rpm |
ZL 331 | 1 - 2 | 1,1 - 2,9 | 0,04 - 0,63 | 250 - 2800 |
ZL 332 | 1 - 2 | 5,0 - 10,0 | 0,15 - 2,0 | 250 - 2800 |
ZL 333 | 1 - 2 | 20 - 30 | 0,63 - 10,2 | 250 - 2800 |
ZL 334 | 1 - 2 | 33 - 53 | 1,1 - 10,2 | 250 - 2800 |
ZL 432 | 1 - 2 | 5,7 - 13,9 | 0,38 - 1,8 | 250 - 2800 |
ZL 432 - ZL 434 | 1 - 2 | 15,3 - 29,6 | 0,82 - 4,7 | 250 - 2800 |
You can buy conical gearboxes of the STM ZL series, find out the price and more information about the product by contacting our specialists.
