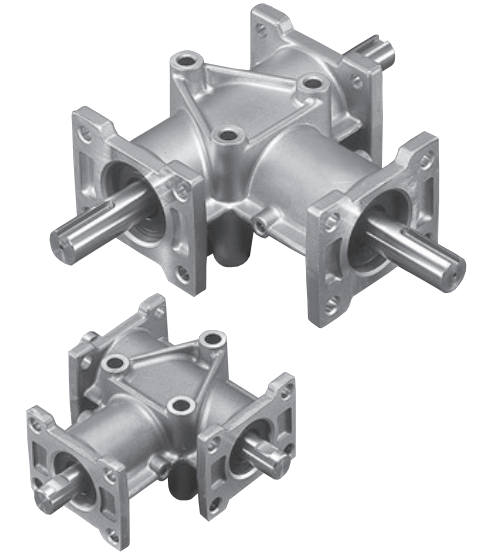

Compact angular gearboxes of the series gap productions Tsubaki Precision bevel gears with spiral teeth are used as an energy transfer mechanism. Due to the high precision of the elements, this line is distinguished by excellent efficiency (98%) and productivity, characterized by exceptional smoothness and no noise during operation. They can be used in a wide range of manufacturing applications, in particular as part of packaging line drives, mixers, etc.
The model range of the series consists of three types of dimensions with universal mounting capabilities, easy installation in any direction. Lightweight body design, cast aluminum is used as the material. The shafts are made of SUS304 stainless steel, with three possible configurations in terms of location and direction of rotation.
Technical characteristics of Tsubaki ARA series angle reducers
- Gear ratio: 1 and 2;
- Number of steps: 1;
- Nominal torque: 1.37 - 17.74 Nm;
- Motor power: 0.005 - 3.15 kW;
- Motor speed: 50 - 3600 rpm.
Standard sizes of Tsubaki gearboxes of the ARA series
Type gearboxes | Nominal torque, Nm | Motor power, kW | ||
1 : 1 | 2 : 1 | 1 : 1 | 2 : 1 | |
ARA3 | 1,37 - 3,72 | 1,37 - 1,76 | 0,02 - 0,52 | 0,005 - 0,28 |
ARA5 | 5,49 - 7,15 | 6,95 | 0,04 - 2,11 | 0,018 - 1,35 |
ARA6 | 8,13 - 17,74 | 9,41 - 11,96 | 0,095 - 3,15 | 0,032 - 1,81 |
You can buy Tsubaki ARA series bevel gearboxes, find out the price and more information about the product by contacting our specialists.
