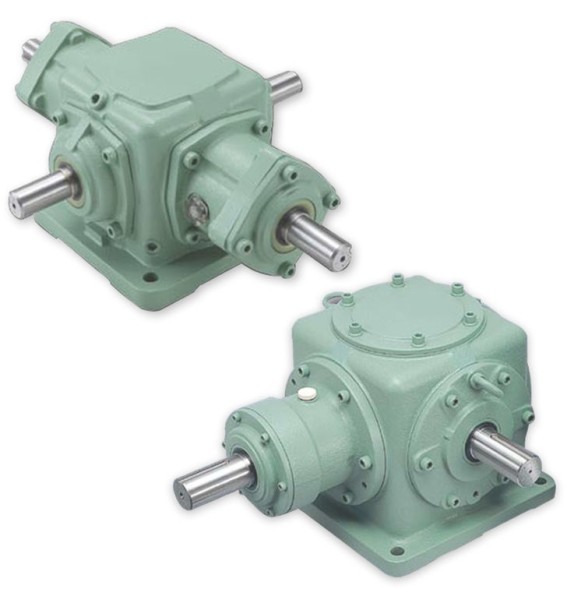

Angular gearboxes of the series ED productions Tsubaki Precision bevel gears with spiral teeth are used as an energy transfer mechanism. Due to the high precision of the elements, this line is distinguished by excellent performance indicators (95-98%) and productivity, characterized by exceptional smoothness and no noise during operation. They can be used in a wide range of manufacturing applications, in particular as part of the drive of lifting equipment, paper machines, metal rolling, amusement rides, etc.
The model range consists of ten dimensions, which gives a wide range of power parameters for specific specifications. The variety of shaft configurations reaches 42 possible types of execution, single or double-sided shafts. The gearbox housing is made of grey or ductile iron, the smallest size is made of cast aluminum.
Technical characteristics of Tsubaki ED series angle reducers
- Gear ratio: 1, 1,5, 2, 2,5, 3;
- Number of steps: 1;
- Nominal torque: 7.42 - 5713 Nm;
- Motor power: 0.01 - 335 kW;
- Motor speed: 10 - 3000 rpm.
Standard sizes of Tsubaki gearboxes of the ED series
Type gearboxes | Ratio reductions | Nom. moment, Nm | Motor power, kW | ||
one shaft | two shafts | one shaft | two shafts | ||
ED2 | 1 | 10,6 - 13,0 | 7,42 - 9,10 | 0,01 - 3,41 | 0,01 - 2,38 |
ED4 | 1, 2 | 24,0 - 48,5 | 16,8 - 30,1 | 0,02 - 7,71 | 0,01 - 5,39 |
ED6 | 1, 1,5, 2, 2,5, 3 | 71,1 - 139 | 49,7 - 97,3 | 0,03 - 22,8 | 0,02 - 15,9 |
ED7 | 1, 1,5, 2, 2,5, 3 | 102 - 214 | 71,4 - 149 | 0,04 - 27,1 | 0,02 - 18,9 |
ED8 | 1, 1,5, 2, 2,5, 3 | 152 - 361 | 106 - 252 | 0,06 - 57,3 | 0,04 - 40,1 |
ED10 | 1, 1,5, 2, 2,5, 3 | 252 - 561 | 176 - 392 | 0,11 - 79,0 | 0,07 - 55,3 |
ED12 | 1, 1,5, 2, 2,5, 3 | 452 - 919 | 316 - 643 | 0,18 - 109,6 | 0,12 - 76,7 |
ED16 | 1, 2 | 908 - 1940 | 636 - 1358 | 0,60 - 163 | 0,42 - 114 |
ED20 | 1, 2 | 1578 - 3205 | 1105 - 2244 | 1,06 - 234 | 0,74 - 164 |
ED25 | 1, 2 | 3146 - 5713 | 2202 - 3999 | 2,11 - 335 | 1,48 - 235 |
You can buy Tsubaki ED series bevel gearboxes, find out the price and more information about the product by contacting our specialists.
