Main application areas
- Raw water
- Biofuels
- Water
- Water disposal
- Water treatment
- Water supply
- Urban wastewater
- Pumps used as turbines
- Desalination of seawater
- Equipment for buildings
- Processing of suspended solids
- Irrigation
- Sprinkling irrigation, irrigation
- Heating /Air conditioning
- Pumping turbine oil
- Pressure increase
- Fire fighting and sprinkler installations
- Food products
- Industry and technological process
- Industrial effluents
- Industrial power plants
- Process
- Water distribution
- System solutions, rehabilitation
- Steel
- Waste water
- Types of orders
- Water transportation
- Chemistry
- Public power plants
- Energy industry
- heating /air conditioning /ventilation

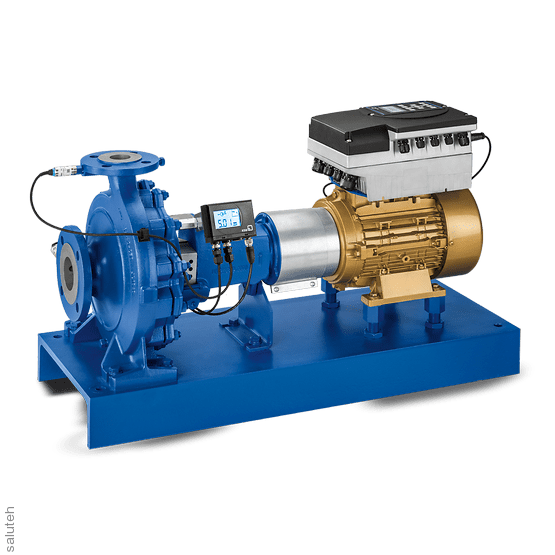

A horizontal pump with a spiral body, single-stage, with a coupling with a spacer, in a process design, the nominal capacity and basic dimensions of which comply with the EN 733 standard.
Overview of technical data
| Q (50Hz) | 1.5 – 740.0 (m³/h) |
| H (50Hz) | 2.0 – 160.0 (m) |
| Type of bearing | ball bearing |
| Separation of the body | transverse (radial) |
| Drive motor frequency | 50 Hz /60 Hz |
| Type of drive | electric motor |
| Drive motor voltage | low voltage |
| Explosion protection | IP 55 |
| Number of impeller inputs | single-threaded |
| Impeller material (according to E standard | 1.4408 /A743 GR CF8 M, CC480K-GS /B30 C90700, JL1040 /A 48 CL 35B |
| Type of installation | base plate |
| Type of coupling | directly |
| Type of lubricant | grease/oil lubrication |
| Max. permissible liquid temperature | 140 (°C) |
| The absence of silicon is guaranteed | yes |
| The position of the nozzle | mechanical suction |
| Maximum operating pressure | PN 16 |
| Process execution | yes |
| Installation of the unit | "dry" installation |
| Shaft material (according to EN standard) | 1.4571, C45+N |
| Standard | EN, EN /ANSI |
| Suction characteristics | non-self-priming |
| Acceptable for drinking water | yes |
| Housing type | spiral body |
| Type of impeller | closed/radial |
| Type of connection | the flange |
| UNSPSC classification | 4015150300 |
| Housing material (according to EN standard) | 1.4408 /A743 GR CF8 M, CC480K-GS /B30 C90700, JL1040 /A48CL35B, JS1030 /A536 GR 60-40-18 |
| eClass | 36410000, 36410100, 36410101 |
| Installation position | horizontal |
| Type of shaft seal | mechanical seal, stuffing box |
| Main application areas | Industry and technological processes, Water supply, Energy, Engineering equipment of buildings |
| Housing material | grey cast iron, stainless steel, spherical graphite cast iron, bronze |
| Max. working pressure from the pressure sides | 16 (bar) |
| Type of installation | stationary |
| Max. rotation speed | 3500 (1/min) |
Features
Brand
KSB
