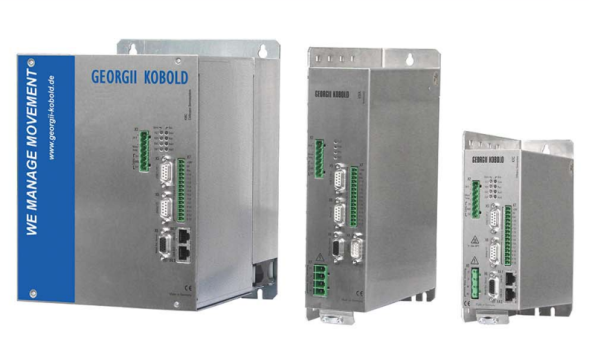

Digital servos the company Georgii Kobold The following series are available with integrated industrial interfaces KTE /KME (EtherCAT), KTC /KMC (CANopen), KTP /KMP (Profibus-DP) and a variation without this function is also available KTA/KMA. A suitable solution for working with a series of highly dynamic KSY or instant KTY servomotors, complete equipment and software support for easy start-up and operation.
High-precision control, adjustment of operating parameters and positioning, all algorithms and settings are saved using software tools. The control is based on a 16-bit microprocessor, with a cycle time of 1 ms or less on request. Algorithms are built in to ensure the safe operation of the drive and the smooth operation of the equipment.
KTx/KMx servos are versatile in use and can be used in a wide range of production areas, such as assembly and packaging equipment, processing plants, electronics manufacturing, semiconductor device manufacturing, winders, textile machines, test benches and others.
Technical characteristics of Georgii Kobold servos of the KTx /KMx series
- Rated current: 2 - 32 A;
- Rated motor power: 0.5 - 16 kW;
- Supply voltage: 230 V (1 phase), 400 V (3 phases);
- Controller interfaces: Profibus-DP (KTP /KMP), CANopen (KTC /KMC), EtherCAT /Ethernet (KTE /KME), версия без использования данного ;
- Channels: digital (8 inputs, 4 outputs), analog (2 inputs, 2 outputs), connector for feedback sensors;
- Cooling system: natural convection;
- The degree of protection of the case: IP20;
- Acceptable temperature ranges: –25 .. +70 ºC;
- Built-in security algorithms;
- LED display on the front panel;
- Commissioning by means of a PC.
Parameters of standard sizes of Georgii Kobold servos of the KTx /KMx series
Type of servo | Power, kW | Current, A | Food |
KTA 2/230, KTC 2/230, KTE 2/230, KTP 2/230 | 0,5 | 2 | 230 V, Phase 1 |
KTA 4/230, KTC 4/230, KTE 4/230, KTP 4/230 | 1,0 | 4 | |
KTA 6/230, KTC 6/230, KTE 6/230, KTP 6/230 | 1,5 | 6 | |
KMA 2/400, KTC 2/400, KTE 2/400, KTP 2/400 | 1,0 | 2 | 400 V, 3 phases |
KMA 4/400, KTC 4/400, KTE 4/400, KTP 4/400 | 2,1 | 4 | |
KMA 8/400, KTC 8/400, KTE 8/400, KTP 8/400 | 4,2 | 8 | |
KMA 16/400, KTC 16/400, KTE 16/400, KTP 16/400 | 8,0 | 16 | |
KMA 32/400, KTC 32/400, KTE 32/400, KTP 32/400 | 16,0 | 32 |
To buy KTx /KMx series AC servos from Georgii Kobold, you can find out the price and more information about the product by contacting our specialists.
