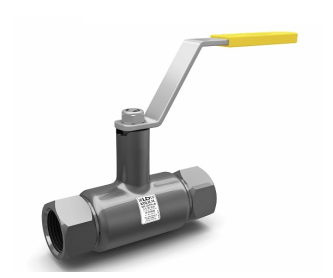

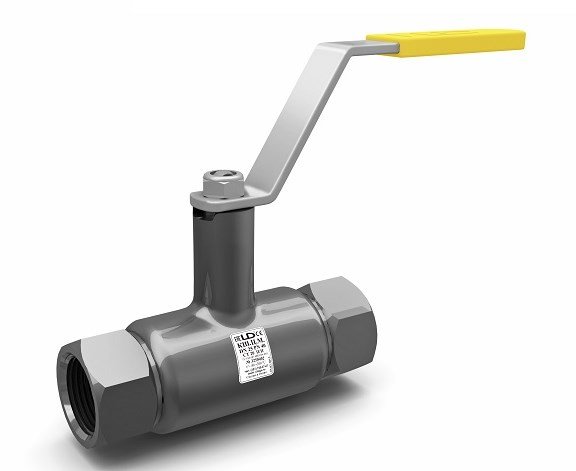

KSH.Ts.M.XXX.40.02 PP Ball valve n/pass. LD KSHTSM PN40, Steel 20 /Stainless steel. 1.4021 /PTFE steel, thread/thread

KSH.Ts.F.XXX.040.02.SP Valve Ball flange/flange standard passage PN40 Tmax=+200oC

• Body: steel (St.20, 12X18H10T, 09G2C - LD Energy)
• Ball: stainless steel
• DN 15-32: 20X13; DN 40-65: AISI 304; DN 80-700: AISI 409;
• Stem: stainless steel (12X18H10T, 20x13)
• Stem seal: fluorosiloxane elastomer
• Stem seal/Sliding bearing: F4K20 fluoroplast (PTFE+C, Teflon)
• Ball seal: fluoroplast F4K20 (PTFE+C, Teflon) with a duplicate seal made of fluorosiloxane elastomer
• Management
• DN 15-250: handle - painted carbon steel with polymer tip
• DN 150-250: worm gear mechanical gearbox is recommended
• DN 300-700: mechanical gearbox included
• Flanges
• Connection dimensions according to GOST 12815-80
