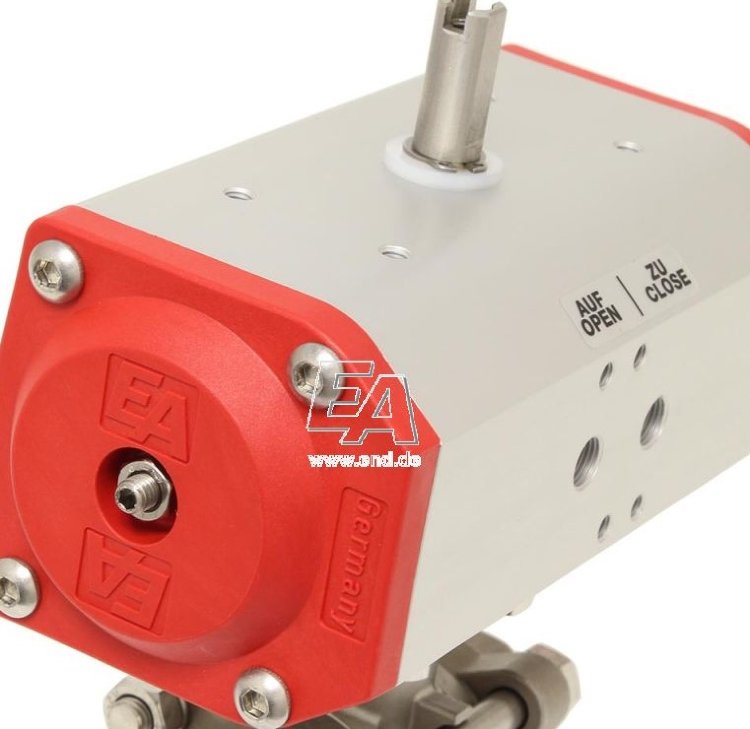

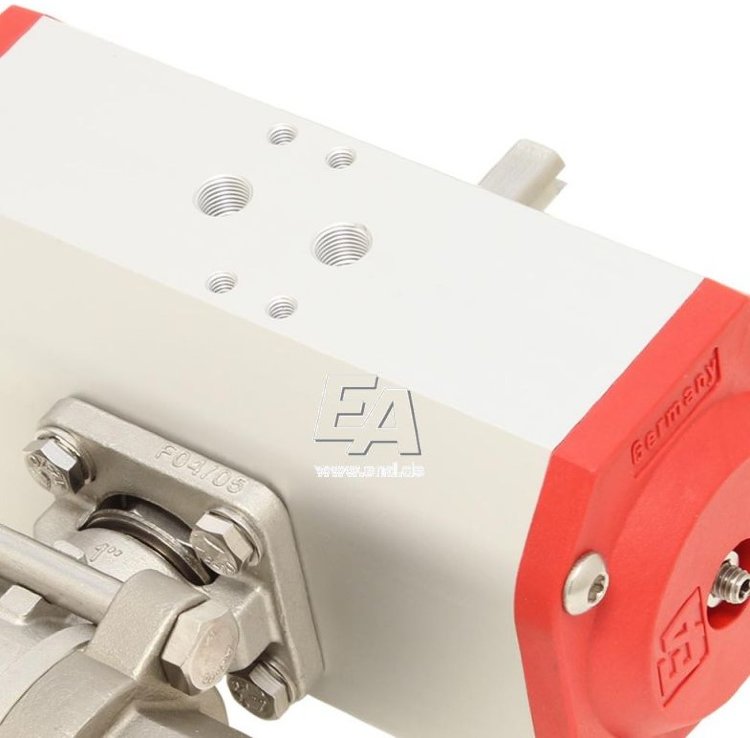

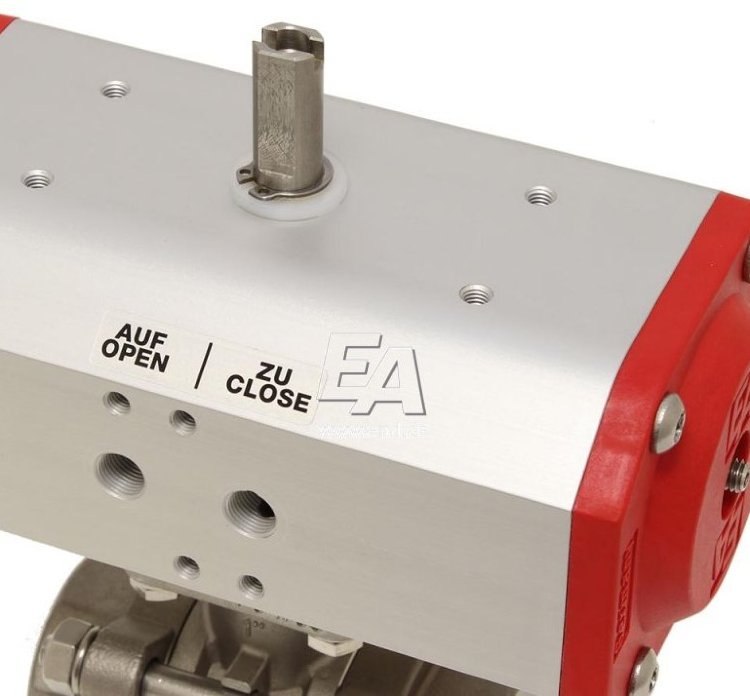

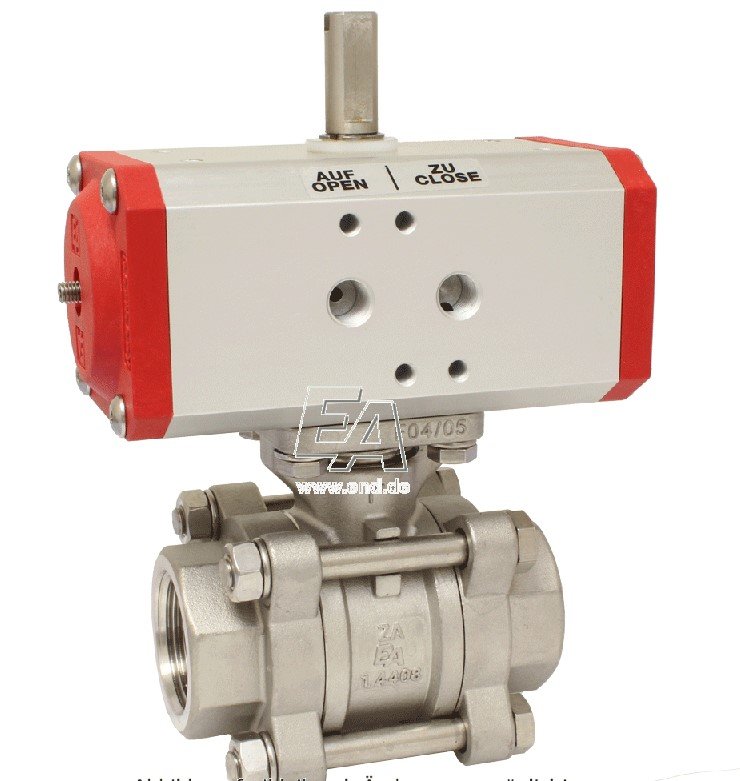

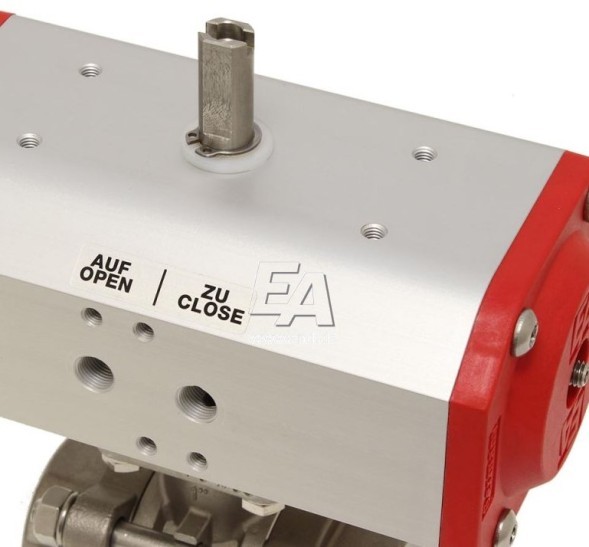

Ball valve ZA 1", with ED43 stainless steel drive. steel/PTFE-FKM, double acting, ZA25-ED43
Art.ZA25-ED43
Two-way stainless steel ball valve for shutting off neutral gaseous and liquid media. The housing consists of a three-component bolted structure with a full cylindrical passage. Due to the self-regulating multi-component spindle seal, the ball valve does not require maintenance. It is stamped in accordance with AD-Merkblatt A4, has a fire safety certificate and an antistatic device. The approval of TA-Luft is under preparation.
The flange plate in accordance with ISO 5211 provides a direct design of the pneumatic rotary actuator, resulting in an extremely compact and functional unit. Due to the principle of the double piston of the rotating drive, the force of the oppositely rotating piston is transmitted to the common gear through two struts rigidly connected to the piston. This principle provides a linear torque curve throughout the entire stroke.
The control function of this ball valve actuator assembly is pneumatically double acting. Additional information can be found on our technical portal. The drive is fully assembled in our assembly, configured and subjected to functional testing before delivery.
Distinctive features:
Flange plate for direct drive with double circle
Simple standardized design or installation and connection of signaling and control devices in accordance with EN 12116 (ISO5211)
Stem packing with disc springs and locking plate, maintenance-free
Housing parts with centering groove and spring for easy and precise assembly (e.g. after welding)
For operating temperatures above +80 °C, please observe the pressure-temperature diagram in the data sheet.
The ball valve is available in many variants and designs and can be ordered online in our store:
- internal thread on both sides
- Welding ends on both sides
- base sealing system
Temperature version with pressure equalization hole and carbon fiber seals
directly installed or installed limit switches or solenoid valves
A special version of ATEX is also available for use of the ball valve in explosive atmospheres in accordance with Directive 2014/34/EU.
