Crane cables from Prysmian Group they have the most compact dimensions (up to 30% less than analogues) while maintaining all indicators at the proper high level, and thanks to improved technology, the weight is reduced by 40%. They do an excellent job in harsh conditions, are resistant to repeated bending, abrasion and physical resistance.

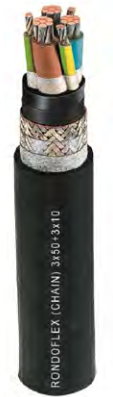

Crane cable Prysmian RONDOFLEX(CHAIN) (N)GRDGOEU/(N)GRDGCGOEU low voltage (0.6 - 1 kV) for use in cable circuits. A popular offer for container cranes, stacking cranes, loading and unloading equipment.
Variants of the models:
- single-core power;
- power single-core shielded;
- power stranded;
- power stranded shielded;
- control cables;
- bus;
- fiber optic.
Technical characteristics of the crane cable Prysmian RONDOFLEX(CHAIN) (N)GRDGOEU/(N)GRDGCGOEU:
Number of conductive cores: up to 24;Core cross-section: up to 240 mm2;
Core diameter: up to 22.5 mm;
Conductor: electrolytic copper, thin-wire;
Configuration: Class 5 DIN VDE 0295;
Core marking: light insulation color with black numbering, grounding conductor green-yellow;
Insulation: PROTOLON MS based on ethylene propylene rubber (EPR);
Screen: customized copper braid (tinned);
Inner shell: ethylene propylene rubber (EPR), GM1b rubber compound;
Outer shell: special compound based on ethylene vinyl acetate, black color;
Maximum operating speed (m/min): 240;
The maximum permissible temperature for the conductor: +90 C;
Stationary temperature: -50 °C ... +80 °C;
Movable temperature: -35 °C ... +80 °C;
Standard Sizes: (N)GRDGOEUO, (N)GRDGCGOEU-O, (N)GRDGOEU-J, (N)GRDGCGOEUJ;
Environmental requirements: unlimited outdoor and indoor operation, resistant to ozone, ultraviolet rays and moisture, oil resistance according to DIN EN 60811-404 and DIN VDE 0473-811-404, paragraph 10.
Maximum operating speed (m/min): 240;
The maximum permissible temperature for the conductor: +90 C;
Stationary temperature: -50 °C ... +80 °C;
Movable temperature: -35 °C ... +80 °C;
Standard Sizes: (N)GRDGOEUO, (N)GRDGCGOEU-O, (N)GRDGOEU-J, (N)GRDGCGOEUJ;
Environmental requirements: unlimited outdoor and indoor operation, resistant to ozone, ultraviolet rays and moisture, oil resistance according to DIN EN 60811-404 and DIN VDE 0473-811-404, paragraph 10.
