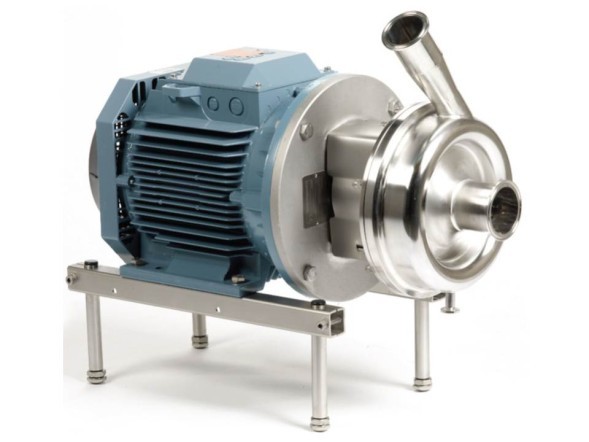

Alva laval centrifugal pumps of the LKH UltraPure series

As standard, the LKH UltraPure is supplied with a 45° outlet (counterclockwise). TD 234-054 outlet pipe 45° The pump is suitable for CIP and SIP, as it has a large radius of curvature of the internal surfaces and cleanable seals.

Materials

• Steel parts in contact with the product: . . . . . . . . . . . . . . . . . . . . Acid-resistant steel 1.4404 (316L) with material certificate 3.1 according to EN 10204
• Other steel parts: . . . . . . . . . . W.o. 1.4301 (304).
• Seals in contact with the product: . . . . . . . . . . . . . . . . . . . . EDPM - USP Class 6.
• Surface, parts in contact with the product: . . . . . . . . . . . . . . . . . . . . . . . Fixed (Ra 0,0.5 microns) Surface, pump casing, outer surface: . . . . . . . . . . . . . . . . . . . Fixed (Ra 0.8 microns)

Engine

• Flange-mounted electric motor conforming to metric standard I
