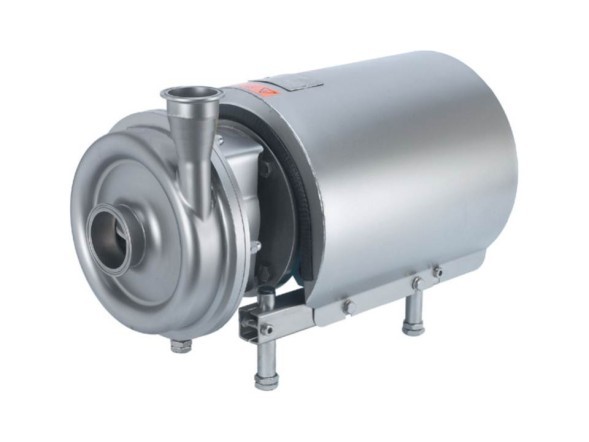

Alva Laval centrifugal pumps of the LKHI series

The LKHI pump is suitable for CIP-cleaning, as it has a large radius of curvature of the internal surfaces and cleanable seals. The LKHI pump is a sanitary pump with a stainless steel casing covering the engine. The assembly is supported by four height-adjustable stainless steel supports.

Materials

• Steel parts in contact with the product: . . . . . . . . . . . . . . . . . . . . W.o. 1.4404 (316L).
• Other steel parts: . . . . . . . . . . W.o. 1.4301 (304).
• Seals in contact with the product: . . . . . . . . . . . . . . . . . . . . EPDM.
• Other O-rings: . . . . . . EPDM.
• Processing: . . . . . . . . . . . . . . . . . . . . Semi-mirrored.
• Connections for the flushed shaft seal: 6 mm/Rp 1/8" pipe.

Engine

Flange-mounted electric motor conforming to the IEC metric standard (EFF II), 2-pole, frequency 3000/
