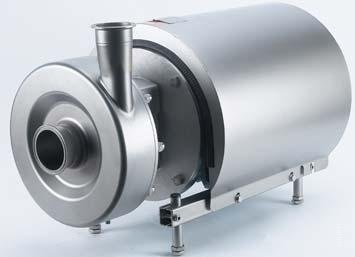

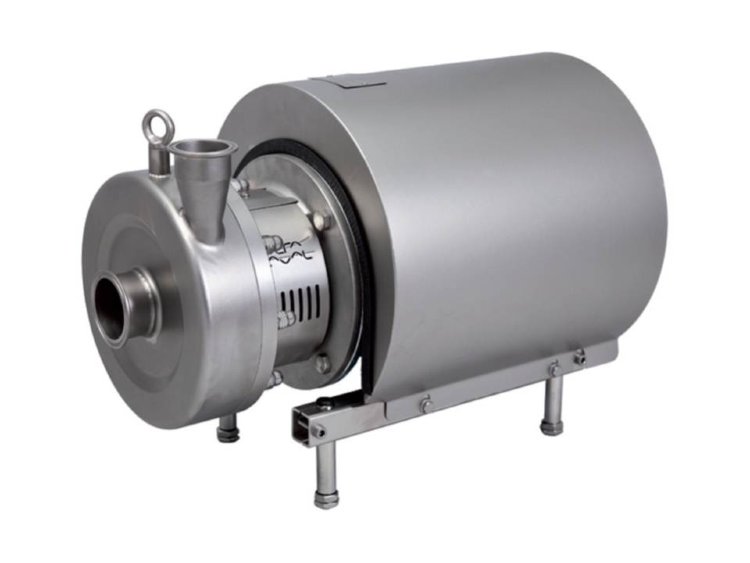

The LKHP pump is a high-performance, economical centrifugal pump specially designed for use at high inlet pressures, for example, in filtration systems. The LKHPF pump meets the requirements for hygienic and gentle pumping of products, as well as the requirements for chemical resistance. Nine standard sizes are available: LKHPF-10, -20, -25, -35, -40, -45, -50, -60, -70.
Materials
Steel parts in contact with the product: . . . . . . . . . . . . . . . . . . . . w.o. 1.4404 (316L).
Other steel parts: . . . . . . . . . . W.o. 1.4301 (304).
Seals in contact with the product: . . . . . . . . . . . . . . . . . . . . EPDM rubber.
Processing: . . . . . . . . . . . . . . . . . . . . Semi-mirrored
Connections for the flushed shaft seal: 6 mm/Rp 1/8" pipe.
The standard sizes of the electric motor are 50 Hz: . . . . . . . . . . . . . . . . . . . . . . . 1,5 - 75.0 kW.
60 Гц: . . . . . . . . . . . . . . . . . . . . . . . 1,75 - 86.0
