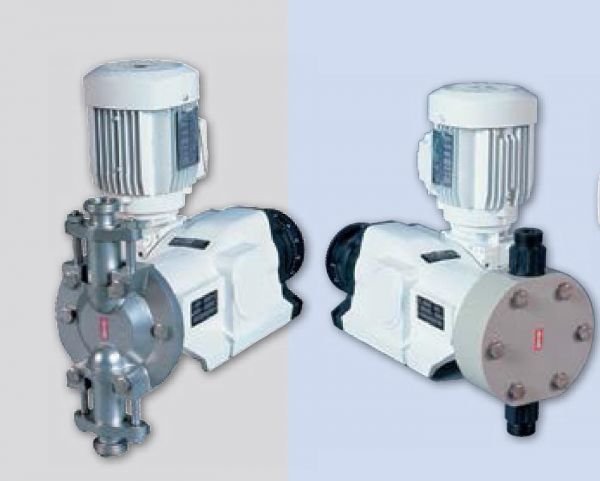

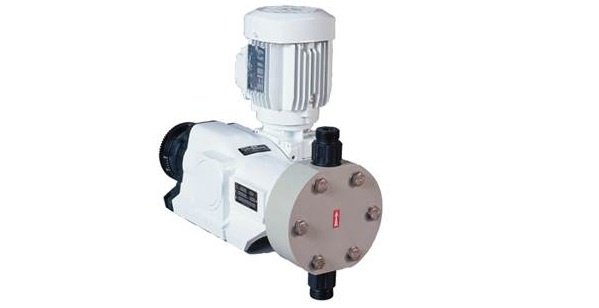

LAGOA Diaphragm Metering Pump PCM

The Lagoa series is designed for dosing a wide variety of products in the chemical industry, in the field of environmental protection, as well as in the food and cosmetic industries.

PCM's wide range of metering pumps includes mechanical diaphragm metering pumps, reciprocating pumps, remotely operated valve systems and complete metering systems.

Technical data
Maximum consumption: 350 l/h per dosing unit
the head

• Adjustable from 10 to 100%
• Maximum pressure: 12 bar
• Maximum temperature: 90°C
• Speed: 48 and 120 cycles per minute
• Accuracy: ± 1%
• Linearity: ± 3%

Ready for shipment within 2 to 6 days.

Application
The Lagoa series is designed for dosing a wide variety of products. Such pumps find their application in the chemical industry
