BOXER 150 AISI 316 pump

BOXER 150 AISI 316 diaphragm pump

BOXER 150 Diaphragm Diaphragm Pump

•

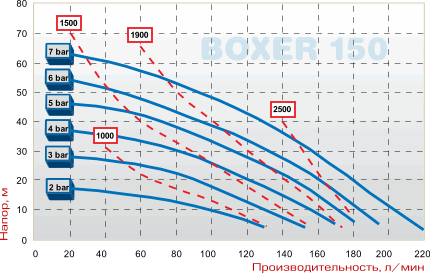

• Max. capacity of the diaphragm pump – up to 220 l/min

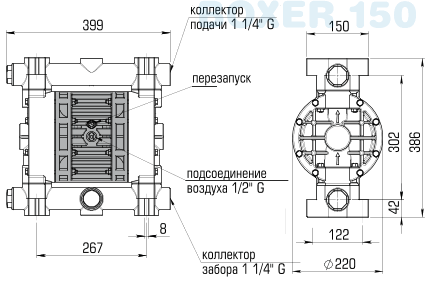

• Fence and discharge connections – 1 1/4”
• Pump versions: PP – PVDF – ALU – AISI 316


Features of the BOXER 150 diaphragm pump

•  pump capacity up to 220 l/min
•  self-pumping of liquid up to 5 m.
•  operation in non-pressurized mode
•  pumping liquids containing solid and insoluble particles up to 5 mm in size.
•  pumping of very viscous liquids
•  smooth 0-100% performance adjustment by adjusting the air flow rate
•  performing the functions of a barrel pump
•  support for operation in the "dry running" mode
•  operation mode of dual (independent) intake and discharge collectors
•  fire safety of the pump design without electric drive
•  standard version - ATEX II 3/3G D IIB certification
