BOXER 503 PVDF Pump

BOXER 503 PVDF Diaphragm Pump

BOXER 503 high-performance diaphragm chemical pump

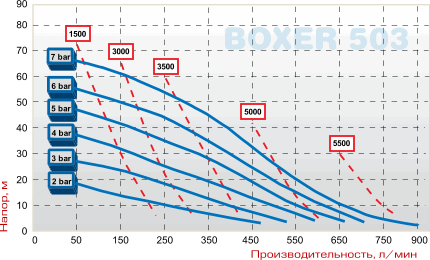

• Max. pump capacity – up to 900 l/min

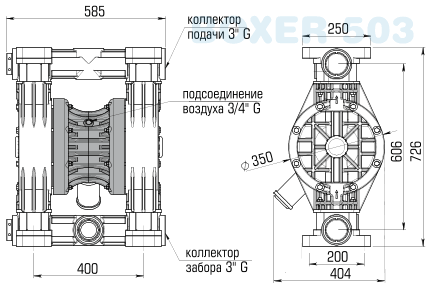

• Connections (intake/discharge) – 3” f or DN 80
• Pump versions: PP – PVDF – ALU – AISI 316

The main features of the BOXER 503 chemical pump

•  high pump capacity up to 900 l/min
•  self-pumping of liquid up to 5 m.
•  non-pressure operation mode
•  pumping liquids containing solids and insoluble
• particles up to 10 mm in size.
•  pumping of very viscous liquids
•  performance adjustment from 0 to 100% occurs
• by adjusting the air flow
•  support for the operation of the pump in the "dry running" mode
•  the possibility of dual or independent collectors
• intake and discharge
•  performing the functions of a barrel pump
•  fire safety of the pump design without electric drive
