CUBIC pump 15 PP

Diaphragm pump CUBIC 15 PP ICU15P-NTTPD--

Compact diaphragm pump with two CUBIC 15 membranes

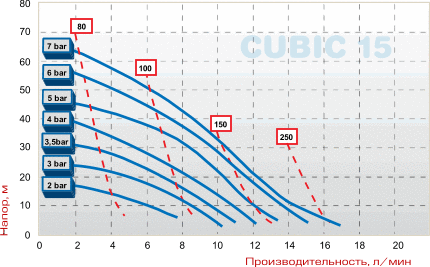

• Pump capacity – up to 17 l/min
• Connections – 3/8”
• Versions: PP – ECTFE

The main features of the CUBIC 15 pump

•  capacity up to 17 l/min; self-pumping of liquid up to 3 m.; operation in non-pressurized mode
•  pumping liquids containing solid and insoluble particles up to 0.5 mm in size.
•  pumping of very viscous liquids
•  smooth 0-100% performance adjustment by adjusting the air flow rate
•  support for operation in the "dry running" mode
• Features

  Brand

  Debem
