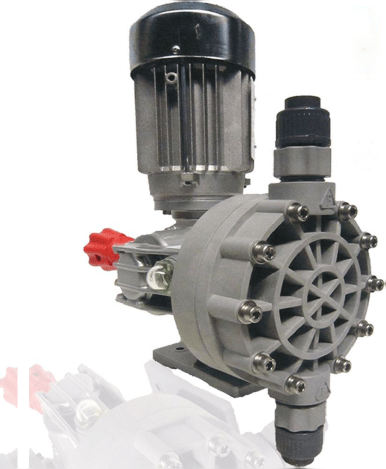

Dosing diaphragm pump Fimars 50hz MIA

MIA Series Diaphragm Pump

Efficiency:

• Consumption: 0-1000 l/h
• Pressure: up to 8 bar
• Accuracy: ± 2% of the nominal flow rate from 10 to 100% of the nominal flow rate *

Features:

• Mechanically driven PTFE membrane
• Without external moving parts
• Robust, compact, reliable design
• Simple operation with minimal maintenance

Adjustment:

• 0-100% stroke adjustment during operation
• Standard micrometric manual adjustment of 1 mm
• Optional electric drive, 4-20 mA or 0-10 commands with manual control
• Additional motor with built-in frequency converter

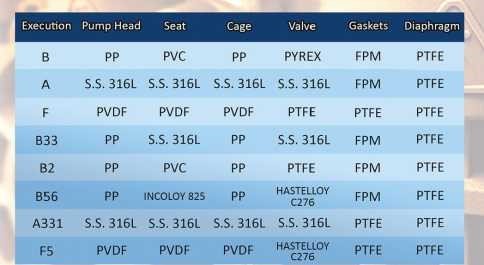

Materials:

• Painted in silver aluminum color
• Standard housings: SS 316 L, PP, PVDF
• Individual design: PVC, Teflon, hastelloy C276, etc...
