MICROBOXER PVDF Pump

MICROBOXER PVDF Diaphragm Pump

MICROBOXER Diaphragm Air Pump

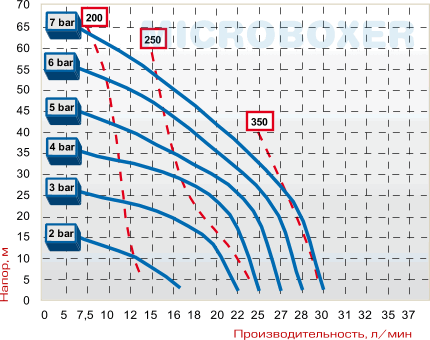

• Capacity – up to 30 l/min

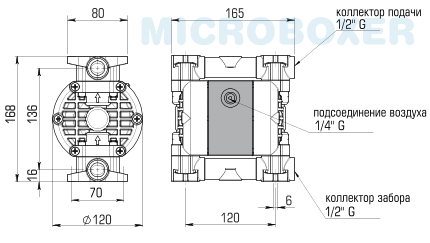

• Connections – 1/2”
• Versions: PP – PVDF – ALU – AISI 316

The main features of the MICROBOXER diaphragm pump

•  maximum pump capacity up to 30 l/min
•  self-pumping of liquids up to 6 m.
•  operation in non-pressurized mode
•  pumping liquids containing solid and insoluble particles up to 2 mm in size.
•  pumping of very viscous liquids
•  smooth 0-100% performance adjustment by adjusting the air flow rate
•  support for operation in the "dry running" mode
•  operation mode of dual (independent) intake and discharge collectors
•  performing the functions of a barrel pump
•  fire safety of the pump design without electric drive
•  стандартное исполнение - сертификация ATEX II 3/3G D IIB T 135°C (zone 2)
•  operation in an explosion
