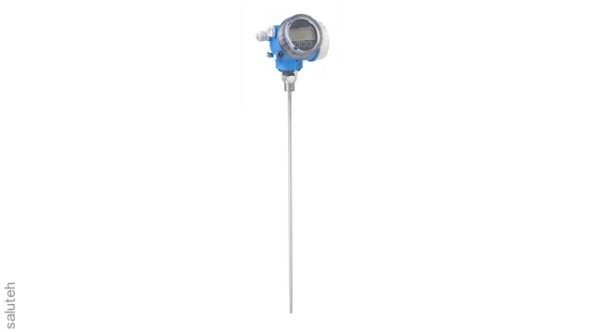

Levelflex FMP50 It is intended for use in liquid media in the absence of strict requirements for operating temperature, pressure and resistance to chemically aggressive effects.FMP50 It is the best option for standard technological processes of supply or storage, as well as for use in the public sector. Micro pulse level transmitter Levelflex FMP50 It is used for continuous measurement of the level of liquids, pastes and pulps.The measurement process is not affected by changes in the medium, temperature, or the presence of gas or steam layers.
Specifications:
| Principle of measurement | Micro-pulse measurement principle | |
| Specifications/Application | For typical applications Rod and cable versions of the probe Built-in memory module, Factory calibration, Measurement reliability: with changes in the physical properties of the medium and process conditions. | |
| Food /Communication | 2x-wire connection diagram 4-wire connection diagram 90-253 V AC 4-wire connection diagram 10.4-48 V DC | |
| Error rate | Rod probe:+/- 2 mm Cable probe: +/- 2 mm | |
| Ambient temperature | -40 °C ... 80 °C | |
| Operating temperature | -20 °C ... 80 °C | |
| Operating pressure abs. /max. overpressure limit | The vacuum ... 6 bar | |
| Wetted parts | Core probe: 316L, PPS, Viton Cable probe: 316, PPS, Viton | |
| Joining the process | Threaded: G 3/4, MNPT 3/4 Flanged: uniflanets | |
| Sensor length | Rod length: 4 m Cable length: 12 m | |
| Max. measurement value | Rod probe: 4 m, min. DP>1.6 Cable probe: 12 m, min. DP>1.6 | |
| Exit | 4 ... 20 mA HART PROFIBUS PA FOUNDATION Fieldbus | |
| Certificates/Standards | ATEX CSA CSA C/US FM IEC Ex NEPSI EN10204-3.1 SIL | |
| Safety approvals | Overfill prevention WHG SIL | |
| Design Certificate | EN 10204-3.1 | |
| Options | Separate probe design with 3 m cable | |
| Application range | Horizontal cylindrical reservoir: use coaxial probe Corrosive products: FMP52 High pressure/temperature >80°C; 6bar: FMP51, FMP54 Interfacial level measurement: FMP51, FMP55 | |
Features
Power Supply, In
~ 400V AC
Brand
Endress Hauser
