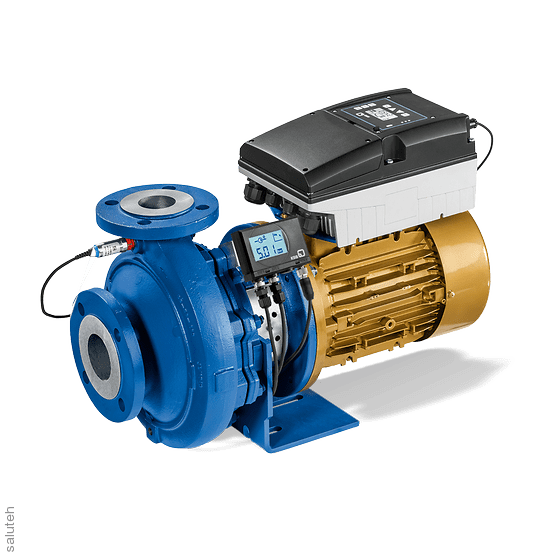

Monoblock single-stage pump with spiral casing with rated capacity according to EN 733. Replaceable shaft protection bushings and wear-resistant impeller slot rings. Applications: water supply, irrigation and sprinkling, drainage, heating and air conditioning systems, pumping of drinking water, process water, hot water, cooling water, swimming pool water, seawater, fire extinguishing water, condensate, oils, salt solutions, detergents, hard water, etc. Code: EB.
Overview of technical data
| Q (50Hz) | 1.0 – 602.0 (m³/h) |
| H (50Hz) | 2.0 – 102.0 (m) |
| Separation of the body | transverse (radial) |
| Drive motor frequency | 50 Hz /60 Hz |
| Type of drive | electric motor |
| Drive motor voltage | low voltage |
| Number of impeller inputs | single-threaded |
| Impeller material (according to E standard | 1.4408, CC480K-GS, JL 1040 |
| Type of installation | block |
| Type of coupling | directly |
| Max. permissible liquid temperature | 110 (°C) |
| The absence of silicon is guaranteed | yes |
| The position of the nozzle | mechanical suction |
| Maximum operating pressure | PN 16 |
| Process execution | yes |
| Installation of the unit | "dry" installation |
| Shaft material (according to EN standard) | 1.4571, C45N |
| Suction characteristics | non-self-priming |
| Acceptable for drinking water | yes |
| Housing type | spiral body |
| Type of impeller | closed, radial, multi-channel impeller, closed/radial |
| Type of connection | the flange |
| Housing material (according to EN standard) | 1.4408, CC480K-GS, GJS-400-18-LT, JL 1040, JS 1025 |
| eClass | 36410000, 36410100, 36410101 |
| Installation position | horizontal or vertical |
| Type of shaft seal | mechanical seal |
| Main application areas | Industry and technological processes, Water supply, Energy, Engineering equipment of buildings |
| Housing material | grey cast iron, stainless steel casting, spherical graphite cast iron, bronze |
| Max. working pressure from the pressure sides | 16 (bar) |
| Max. drive power | 45 (kW) |
| Type of installation | stationary |
| Max. rotation speed | 4400 (1/min) |
Features
Brand
KSB
