A cylindrical gearbox is a mechanism that converts and transmits torque using transfer wheels. They are made in the form of cylinders, which is why the gearbox got its name. The axes of the shafts are parallel or on the same straight line. The gears are placed in the housing, where they move in a large amount of grease.

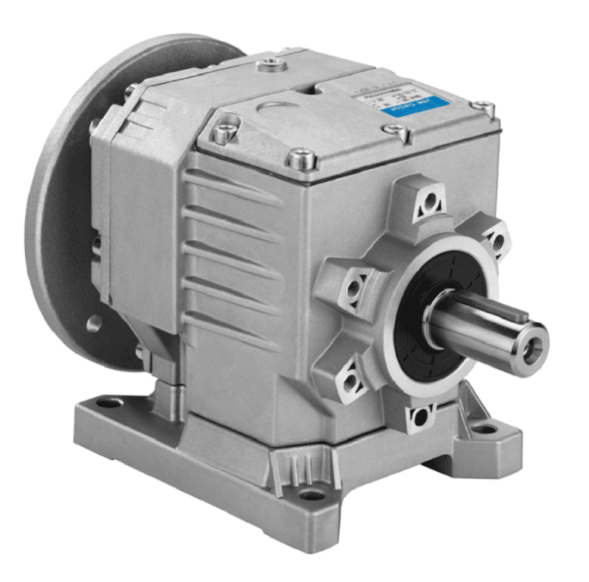

INNOVARI cylindrical gear motors (Italy) in an aluminum housing are built on a modular principle:
Modular gearbox bases are equipped with inlet flanges for motors, mounting legs, side flanges, input and output solid-state shafts.
The patented concept of removable paws has no analogues today.
Each gearbox size can be equipped with several mounting foot options identical in size to SITI, BONFIGLIOLI, MOTOVARIO, STM, SEW EURODRIVE, LENZE, NORD, LEROY SOMMER, HANSEN, DAVID BROWN, FLENDER, SUMITOMO, PUJOL.
All gearboxes are filled with synthetic oil for the entire service life and do not require maintenance.
Gearboxes of standard sizes 202/3A-302/3A-452/3A are supplied filled with oil for any mounting position, when ordering standard sizes 202/3A-302/3A-452/3A, the mounting position must be specified.
General characteristics:
- standard sizes 202A-452A (aluminum housing), 402/3A-602/3A (aluminum housing);
- The input and output shafts are made of 39 NiCrMo3 steel;
- high-quality KOYO, NSK, KBC bearings are used;
- high-quality Freudenberg, NOK oil seals are used;
- Graphite pads are used, not paper pads;
- noise level 60/65 dBA;
- explosion-proof according to ATEX 2, ATEX 3 standards;
- specialized oil for the food industry;
- non-standard dimensions of the output shaft and legs;
- gear ratios from 3.52 to 61.88;
- suitable for electric motors of three dimensions (63, 71, 80, 90, 100/112);
- they provide output torque from 12.7 to 225 Nm (depending on the gear ratio and power of the electric motor).
Areas of application:
The cylindrical gearbox is installed in:
- pumps;
- pipelines;
- stirrers;
- food industry;
- difficult conditions.
