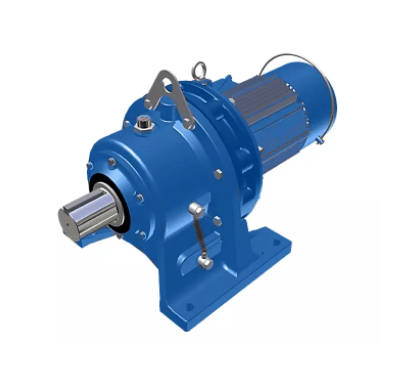

CYCLO DRIVE 6000 Sumitomo Cycloid Gear Motor
Sumitomo CYCLO DRIVE 6000 Cycloid gearboxes
Reliable and durable high-torque gearboxes used in various industries due to their numerous design options, minimal maintenance requirements and long service life at optimal cost.
The main elements of the cycloid (planetary-terminal) transmission
An eccentric, a low-speed shaft with drive pins, cycloidal discs and a housing with an internal roller crown. Due to the large number of contact points at a time, bending stress and the effect of sliding friction are eliminated. All transmission elements are affected only by compression forces and rolling friction. This principle of operation ensures minimal wear of the gearbox parts due to the uniform distribution of the load on approximately ⅔ all teeth, excluding their breakage.
Sumitomo guarantees the operability of the cycloid gearbox in conditions of 500 percent short-term shock overloads. Tests of Cyclo-reducers showed slight wear after 60,000 hours of operation and the possibility of their further use.
The production of components and assembly of Sumitomo gearboxes and complete drives is carried out exclusively in Germany and Japan. The company is constantly improving its products. Product quality and compliance with environmental standards comply with the requirements of ISO 9001:2008 and ISO 14001:2005 standards, and are certified.
- Sumitomo CYCLO Drive 6000 Gearboxes they are provided with a plastic lubricant for the entire service life, are ready for operation and can be mounted in any position.
- CYCLO Drive 6000 gearboxes are supplied already filled with ESSO Unirex N2 grease at the factory and do not require additional lubrication throughout their entire service life. Nevertheless, the service life of the gearboxes can be extended by updating the grease after 20,000 hours or 4-5 years of operation.
- Sumitomo CYCLO Drive 6000 gearboxes filled with Shell Alvania R2 lubricant require additional lubrication after 500 hours of operation, but no later than 2 months after the first additional lubrication.
Advantages
- Resistance to shock loads in the drive is up to 500% of the rated torque.
- Long service life with minimal maintenance requirements.
- High efficiency – 95%, even with high gear ratios.
- Low noise, vibration, low backlash (high kinematic accuracy).
- Compact design with high gear ratios.
- In small sizes, grease is applied at the factory for the entire service life in all gearboxes.
- For standard sizes from 6060 to 6125 – universal mounting and grease for the entire service life.
- For standard sizes from 6130 and above – lubrication with liquid oil.
- Hollow input shaft and adapter for mounting an IEC standard electric motor.
- Installation of the electric motor through an adapter and a solid input shaft with a coupling.
- Horizontal or vertical mounting (output shaft up or down).
Application
- Mining, woodworking, pulp and paper, chemical, food industry, metallurgy, machine tool industry, automotive industry.
- Production of cement, plastic, rubber.
- Cranes and lifting and transport equipment.
- Water treatment, water treatment, wastewater treatment.
- Energy.
Technical specifications
| Standard sizes | 34 (single-stage) 56 (two-stage) |
| Torque, Nm | 7,2 - 68200 |
| The power of electric motors of gear motors in standard design, kW | 0,12 – 55 |
| Gear ratios | 6:1 – 19:1 (single-stage) 104:1 – 7569:1 (two-stage) 8041:1 – unlimited (three-stage) |
| Mounting options | on the legs H, flanged (types F, V); horizontal or vertical (output shaft up or down) |
| Electric motor standards | NEMA, IEC, JIS, UL, CSA, CER |
