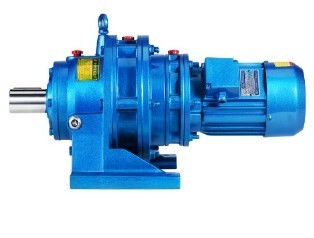

Cycloidal gear motor BWED63-187-Y7.5 DC170V brake BWEY3922-187-Y7.5 DC170V

Cycloidal gear motors BWED - this is a high quality of manufacture and ease of operation.

Cycloidal Gear Motor BWED52-187-4kW i=187, 4kW, 380V&50Hz&1450RPM&IP54

Cycloid transmission (planetary-terminal) differs from others in that 67% of the tooth area of cycloidal discs is in contact at any given time. This allows the cycloid transmission to withstand the highest impact loads, which can be up to 500% of the rated torque of the gearbox.

Any other type of transmission has an overlap coefficient ten times less, as a result of which manufacturers of general industrial drives focus on an overload capacity of no more than 200% of the rated torque.

Features of the cycloidal gearbox

• High extraction coefficient and high level of efficiency
• If the cycloidal gearbox is equipped with a single-stage transmission, the gear ratio can reach up to 1:87 and the efficiency will be more than 90%. If this transmission equipment is equipped with multi-stage control, the exhaust coefficient will be higher.
• Compact structure and small size.
• The cycloidal gearbox is equipped with the principle of planetary control, the input and output shafts are located on the same axis, so the gearbox has a small size.
• Smooth running and low noise.
• Reliable performance and long service life.
• The main components of the cycloidal gearbox are made of high-carbon chrome-plated steel material and these products have a high level of strength. Moreover, the friction of the second kind of some gear contacts makes the gearbox durable.
• The cycloidal gearbox has a rational design and is easy to maintain.
