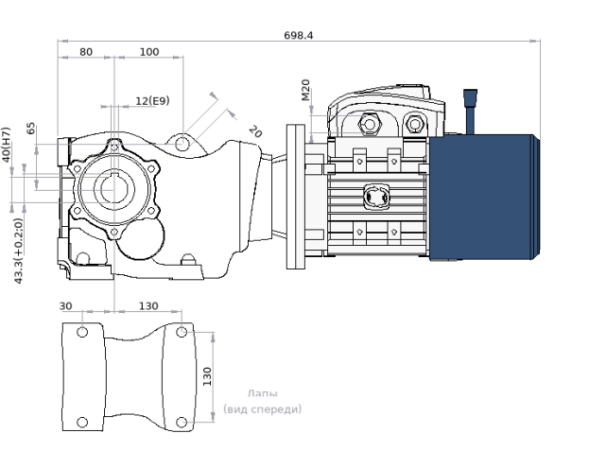

Мотор-редуктор Enduro5 i:41.7 P90B5 Mot ATDC90L-4 B5 kW1,5 230/400 ASSEMBLYEN BRAKESIL
Monolithic cast-iron housing for heavy-duty use.
ENDURO is a new conical cylindrical gearbox with a bevel gear. The unique contour, solid, precise, monoblock, cast iron body, base and flange provide exceptional strength. The modular design with removable outlet flange and integrated legs makes it easy and fast to convert between flange or foot mount. Bevel gears in the middle stage to be quieter and at the same time achieve a higher maintenance ratio.
IEC flange and hollow shaft. The choice of hollow inlet flanges allows direct mounting of any standard motor. The unique ENDURO design allows you to mount any size in any position. ZZ - auto-lubricating bearings on the input and output shafts. Mechanical parts fixed in their positions by snap-on rings and spacers.
Options and special designs:
- Outlet flange (options)
- Locking device (options)
- Output shaft on the right, left, double (diameter selection)
- Oil seals made of viton
- Cooking oil VG460 -20 ° C ÷ + 40 ° C
- Synthetic oil for very low temperature
- High-temperature synthetic oil
- Stainless steel external screws
- Anti-corrosion coating on the input and output shaft
- C5M paint for aggressive media
- Moisture-resistant paint
- Special RAL color, etc
IE2 or IE3 standard, IP55, multi-frequency 50/60 Hz, multiple voltages 220\380; 230\400; 260\415; 400\690; 380\660; 415\720 B, aluminum or cast iron housing, S1. (IE4 on request)
Configurations: V3; B5; B14; B5R; V3\B14; V3\B5; B3\B5R
Automotive electric motors are built in accordance with international standards. Each size in the design forms is calculated with reference to the tables of the IEC 72-1 standard.
All motors have many voltages and frequencies of 50/60 Hz, insulation class F, (H on request), S1 continuous operation, protection IP55 (IP56, 66, and 67 on request). Tropical winding, efficiency class IE2 or IE3 are provided for operation with frequency converters.
Options and special designs:
- cable entry position (standard on the right), front, left, rear
Special protection from the external environment:
- Tarred terminal box or winding or both
- Anti-corrosion coating of the stator and laminated rotor
- Anti-rust coating of the shaft and rotor
- C5M paint
- Moisture-resistant paint
- Paint for aggressive environments
- Winding for operation in tropical conditions (standard)
- Anti-corrosion additional lubrication around the bearings
- Heating devices
- Rain shield or casing for the textile industry
- Special RAL colors, etc
Electrical protection:
- Forced cooling system
- Bimetallic thermal sensor RTO or thermistor RTS (standard depends on the size)
- RT100 temperature sensor for bearings
- RT100 temperature sensor for winding
- Reinforced winding for working with a frequency converter (standard), etc
Mechanical protections and adaptations:
- Roller bearings on DE (if not standard)
- Vibration sensors
- Manshy shaft, Elongated shaft, double shaft
- Pinches on the drive side with axial mechanical protection
- Lubrication nipples
- Without a fan
- Metal fan cover instead of plastic, etc.
Encoders:
- Incremental encoders
- Absolute encoders, profinet, profibus, etc
