GFL suspended cylindrical gearbox, space-saving and efficient.
In combination with 3F AC motors and servomotors, our outboard cylindrical gearboxes are compact and efficient drive modules.
The low toothed backlash ensures maximum accuracy. In addition, they can also distribute the output power and torque by means of a drive shaft on both sides. The gearboxes are available in a 2- and 3-stage versions with a torque up to 11.615 Nm and a gear ratio up to i=856.
Various versions of the Drive Systems in conjunction with the decentralized Inverter drives of the 8400 motec cover a power range of up to 7.5 kW.
Our designs are for you:
- 2-speed and 3-speed gearboxes
- Hollow shaft with keyway or crimping ring
- Solid shaft with keyway
- Installation on paws or flange
- Torque plate, including rubber buffer
Lenze cylindrical flat gear motors have the following power range: from 0.12 kW to 45 Kw. A wide range of gear ratios, up to i=856, - in combination with a small step=1.12 - allows you to accurately select the required output shaft rotation frequency.
The design of all Lenze engines is based on the modular principle, which ensures the high flexibility of the proposed gear motors.
Reliability in operation is ensured by insulation class F and protection class IP 55.
The double-coated wire winding with additional phase insulation has a high degree of protection against breakdowns, withstands high voltages and is particularly resistant to mechanical damage. To solve the widest range of complex drive tasks, this type of gear motors is perfectly combined with a frequency converter and a Lenze servo converter.
Cylindrical flat gear motors with integrated motec frequency converter are ideal for compact, decentralized drive applications.
This type of gear motor is most often used with a hollow shaft, as an output version. The high quality of the connecting elements and gears of Lenze gearboxes ensures a low (no more than 20 minutes) backlash in the operation of these devices when they are used.
Versions at the entrance:
- gear motor
- servo gear motor
- gear motor with integrated frequency converter
- flange for motors with IEC standard
- free input shaft
- compact devices
Output versions:
- solid shaft
- hollow shaft
- hollow shaft with insert
- paws
- the flange
- centered threaded hole
The double-coated wire winding with additional phase insulation has a high degree of protection against breakdowns, withstands high voltages and is particularly resistant to mechanical damage. To solve the widest range of complex drive tasks, this type of gear motors is perfectly combined with a frequency converter and a Lenze servo converter.
Cylindrical flat gear motors with integrated motec frequency converter are ideal for compact, decentralized drive applications.
GFL Gearbox size Gear ratio range
04 05 06 07 09 11 14
Output torque, nm (at high gear ratio)
GFL-2 190 345 657 1337 3107 4882 11334 i=3,5 - 90
GFL-3 345 657 1378 3170 5952 11150 i=63 - 856
Description:

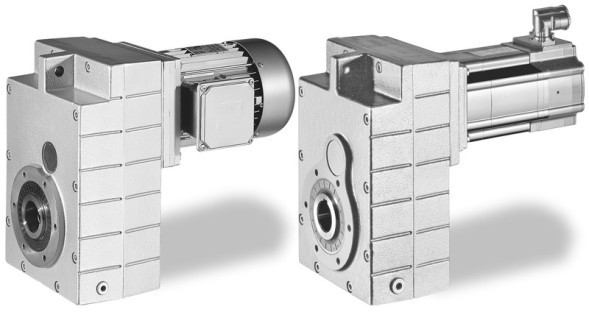

- GFL09-2MSDR112C22
- 16333457
- Gear motor GFL09-2MSDR112C22, No.16333457
- Gear motor
- Type GFL09-2MSDR112C22
- Engine code MDEMABR112-22C0C
- Motor Series Asynchronous motor
- Mounting on the gearbox (flange) Direct mounting (dvig. integrated.)
- Rated power 4 kW
- Rated torque 26.3 Nm
- The estimated rotation speed is 1450 rpm
- Rated voltage 230 /400 V +-10%
- Rated current 16.1 /9.3 A
- The estimated frequency is 50 Hz
- cosine ϕ (power factor) 0.73
- Gear ratio 32.667
- The rotation speed is output. shaft speed 44.4 rpm
- Torque output. shaft 835 Nm
- Service factor 2.56
- Degree of protection IP55
- Operating mode S1
- Temperature class F
- Cooling Is Built In. fan
- PTC Engine Protection
- Output shaft S- shrink disc 65, pos. 1
- Gearbox design D without paws, without centering
- Output flange R - without flange
- Terminal box Position 2
- Connection type Standard
- Mounting position A
- Type of lubricant CLP HC 320
- The ventilation element is installed
- Anti-corrosion coating OKS-S (Small; C1)
- Color RAL 7012 (grey)
- Protection of the output shaft oil seal Viton
- Support from turning Rubber shock absorbers
- Brake, Spring version
- Brake size 14
- Brake voltage 24 V DC
- Brake design is non-adjustable
- Brake torque 60 Nm
- Brake with O-ring Yes
- Engine code C86 (for IF) 1255
