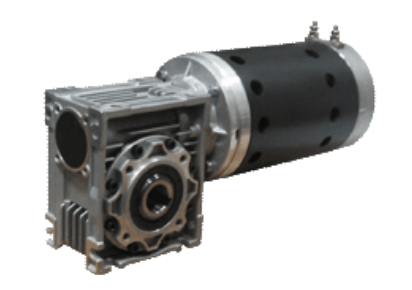

WG1188-i=40-24V Worm gear motor
Characteristics of the electric motor
- Power - 600W
- Supply voltage - 24V
- Idle speed - 2400 RPM
- Rated speed - 2020 RPM
- Rated current - 25A
- Engine torque (without gearbox) - 20.3 kg*cm
- The operating mode is continuous
The WG1188 series gear motor consists of a reversible DC collector motor and a worm gear. Gear ratios of gearboxes 1/10, 1/15, 1/20, 1/30, 1/40, 1/50, 1/60. The maximum torque is 780 kg*cm.
