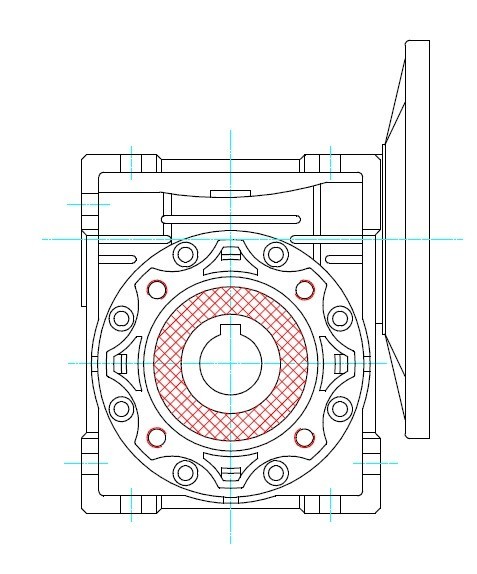

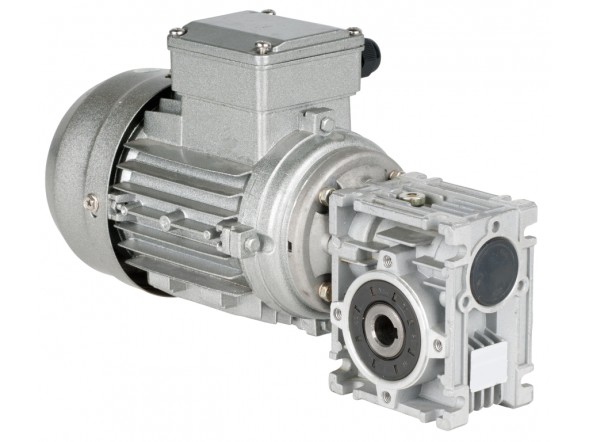

Червячный мотор-редуктор CVR063(i=40)IEC80B14/GL-80M2-4-0,75kW, 230/400V AC, 1400/min, 50Hz, IM B14, F, IP55, n2=35 Об/мин, M2=143 Nm, sf-1,0

CRV Worm Gearboxes — a budget solution with high reliability and load capacity.

The drive power depends on the size and power of the electric motor, which varies in the range from 0.06 to 15 kW. Due to their versatility, CRV gear motors can be used to replace outdated equipment.

General technical characteristics of worm gear motors of the CRV series:

• 11 standard sizes of worm gear motors with power from 0.06 to 15 kW;
• The gear ratio range is from 5 to 100;
• the maximum output torque is 1400 N·m, the permissible radial load is 16500 N
• the housing of worm gear motors of the series up to NMRV 105 standard size is made of aluminum alloy;
• the housing of worm gear motors of 110-200 standard sizes is made of gray cast iron of the G200 brand, processed according to FEM technology;
• The gears of the worm gear are made of bronze alloy GCuSn12 (UNI7013-72);
• worm grinding profile ZI (UNI4760);
• Niemann Quality Control (Fraunhofer Institute for Integrated Circuits);
• patented compact design of the worm gear motor housing;
• The housing of worm gear motors starting from size 030 is painted with blue polyepoxide paint (RAL 5010) in accordance with DIN 1843 standards.

Model CRV 063 - the most popular standard size in the series. The single-stage unit is assembled by IEC electric motors and is available in two versions - with flanges and on paws.

Marking of the worm gear motor

CVR 063 (i=30) IEC71B14 MS712-4

Symbols

• Pn1 - input mechanical power
• M2max - rated output torque
• n2 -output speed of the gearbox
• EFFICIENCY - efficiency factor
• n1 - rated engine speed
• i is the gear ratio of the gearbox
• sf - service factor of the gear motor
• FRAME - type of connecting flange
