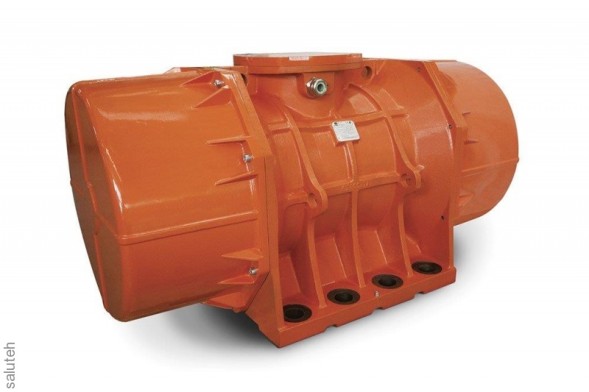

Vibrator pad MVE 14500/15

Standard series of pad vibrators MVE 4 poles with frequency 1500 rpm. This type of pad vibrators provides centrifugal force from 25 to 14352 kg. The pad vibrator is ATEX ExII3D and ETL certified, Class II, Division 2 for use in the presence of potentially flammable powders.

• Article number	E414500
  Manufacturer	OLI S.P.A
  Length (mm)	890
  Width (mm)	530
  Height (mm)	484
  Gross weight (kg)	460
  Power (kW)	11.5
  Connection type	triangle
  Working torque (kg*cm)	1142.4
  Driving force (kG)	14352
  Voltage (V)	400
  Current strength (A max)	18.5
