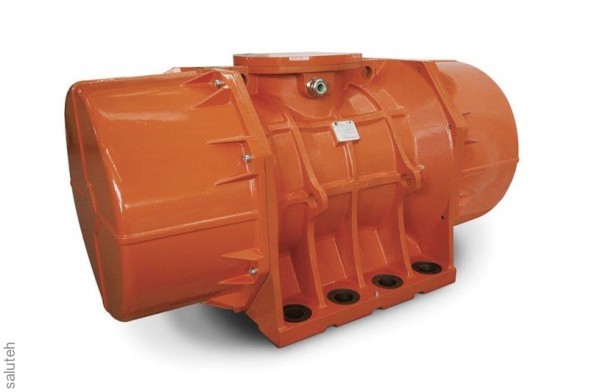

Vibrator pad MVE 17000/075

Standard series of pad vibrators MVE 8 poles with frequency 750 rpm. This type of pad vibrators provides centrifugal force from 105 to 18395 kg. The pad vibrator is ATEX ExII3D and ETL certified, Class II, Division 2 for use in the presence of potentially flammable powders.

• Article number	E817000
  Manufacturer	OLI S.P.A
  Length (mm)	1120
  Width (mm)	570
  Height (mm)	542
  Gross weight (kg)	812
  Power (kW)	9.1
  Connection type	triangle
  Working torque (kg*cm)	4401
  Driving force (kG)	13822
  Voltage (V)	400
  Current strength (A max)	20
