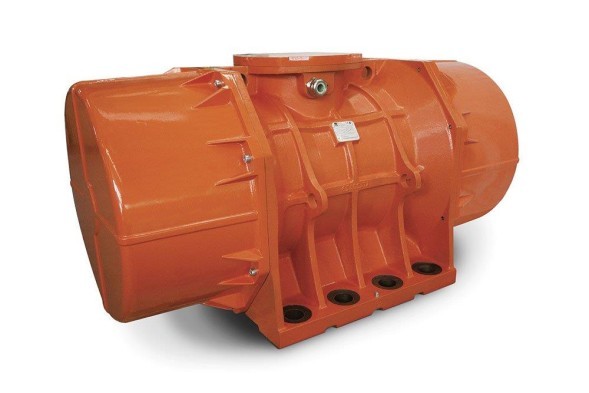

MVE22000/1 Electric Vibrator Pad 1000ob/min 227.11kN 14kW 28A 400V 916kg
The MVE 1200/3 pad vibrator, an analogue of the IV-98, is the most popular series of MVE pad vibrators. MVE vibrators are easy to use and do not require special maintenance.
Equipped with SKF bearings, the shafts are made of steel alloy and have high load resistance, which guarantees reliable operation of the vibrator.
Operational qualities and advantages:
- Motor protection IP 66 - NEMA 4
- Insulation class F
- 750 /1.000 /1.500 /3.000 rpm
- The power supply is single-phase 220V and three-phase 380V
Article number E622000
- Length (mm) 1130
- Width (mm) 610
- Height (mm) 594
- Gross weight (kg) 916
- Power (kW) 13.95
- Connection type triangle
- Working torque (kg*cm) 4067
- Driving force (kG) 22711
- Voltage (V) 400
- Current strength (A max) 28
Features
Working moment, cmkg
4500
Centrifugal force, kN
227,1
Power, kW:
14,0
Rotation speed, rpm
1000
Rated current, A
28,0
Power Supply, In
~ 400V AC
Weight, kg
916,00
Brand
OLI
