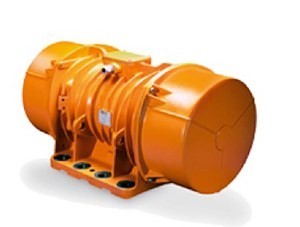

Vibration motor pad MVSI15/1710-S02-TS2 1500 rpm 17.6kN 1.1kW 2.0A 400V 51kg

The most common series on-site electric vibrators, which has found application in various machines and mechanisms, from ordinary vibrating screens and vibroconveyors to food equipment and sports simulators.This series of industrial vibrator motors is certified for potentially explosive environments containing combustible dust (ATEX, IECEx, GOST). Series up to 300 kN.

Operating mode: constant (S1) at maximum value of centrifugal force and electric power.
Insulation class: F (155°C) or H (180).

Catalogs:

• 2 poles - 3000/3600 rpm
• 4 poles - 1500/1800 rpm
• Features

  Working moment, cmkg

  400

  Centrifugal force, kN

  150,0

  Power, kW:

  11,0

  Rotation speed, rpm

  1500

  Rated current, A

  10

  Power Supply, In

  ~ 400V AC

  Weight, kg

  51

  Brand

  Italvibras

  Temperature Tmax, °C

  +10 до +150°C
