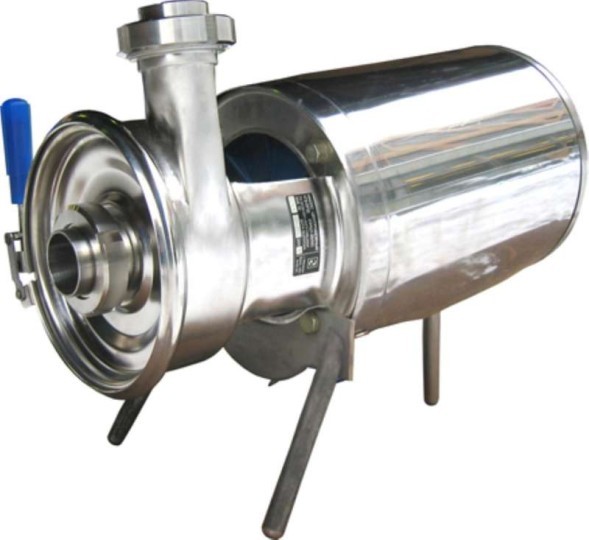

Milk pump G2-OPB for pumping milk and dairy products with temperatures up to 90°C
The pump is centrifugal, non-self-priming. It is installed without a foundation on 3 supports. G2-OPB pumps are single-stage, cantilever-monoblock, with closed impeller blades.
Pump G2-OPB (36-1TS10-10-12.5)
Specifications: Supply 10 m3/hour Head 20 meters of water column Diameter of inlet and outlet pipes 35 mm Electric motor type AIR80A2 with a capacity of 1.5 kW Weight 30 kg
Biysk milk pumps BY Vostok
Biysk milk pumps are designed for pumping milk and liquid dairy products, as well as similar in viscosity and chemical activity of food products with temperatures up to 90 °C. The pumps are single-stage, cantilever-monoblock, with closed impeller blades.
Pumps of the G2-OPD brand of the ONC type are self-priming. They are installed without a foundation on three supports. Pumps of the 1G2-OPD brand are centrifugal, self-priming. Pumps VZ-OR2-A2 and VZ-ORA-10 (HP-10) are rotary pumps for pumping viscous products. We are the official dealer of JSC BRESTMASH
All pump parts are made of high-quality food grade stainless steel.
All products are certified and approved for use in the food industry.
In the table below you can see the characteristics of milk pumps and find out their price
| Characteristic | G2-OPA | G2-OPB | 1G2-OPD | G2-OPD | NCC 12/10 | V3-ORA-2 | V3-ORA-10 (HP-10) |
|---|---|---|---|---|---|---|---|
| Type | 36-1TS6,3-12,5 | 36-1TS10-10-12.5 | 50-1TS7,1-31 | 50-3C7,1-20 | Rotary for viscous products | Rotary for viscous products | |
| Flow rate, m3/hour | 6,3 | 10 | 25 | 25 | 12 | 0,5-2,0 | 10,0 |
| Pressure, m. water.st. | 12,5 | 20 | 31 | 20 | 10 | 0.2MPa | 0.2MPa |
| Diameter of inlet and outlet pipes, mm | 35 | 35 | 50 | 50 | 35 | 35 | 50 |
| Electric Motor, Type | AIR71A2 | AIR80A2 | AIR100L2 | AIR100L2 | |||
| Power, kW | 0,75 | 1,5 | 5,5 | 5,5 | 1,5 | 0,55 | 1,5 |
| Weight, kg | 21 | 30 | 75 | 80 | 27 | 38,5 | 90,7 |
