- Series:ST-P Series
- Model:ST-P BA

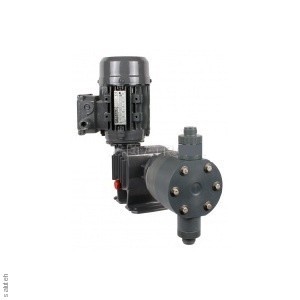

- Description:Plunger dosing pump ST-P BA. Mini series.Standard version: Configuration BA: pump head — PVC, plunger — ceramic Capacity: from 6 to 190 l/h, back pressure up to 10 bar
- Dosage regimen:Constant ON-OFF
- Type of management:The pump performance is regulated using a micrometer knob that controls the stroke length of the plunger. Performance adjustment can be carried out while the pump is running.
- Display:No
- Indication:No
- Level sensor support:Optional
- The scope of delivery:1 pc. – plunger dosing pump. 1 pc. – passport/instruction manual
- Additional information:Standard execution
Features
Brand
Etatron
Model
ST-P BA
Housing material:
Алюминий
Number of pulses:
120 имп/мин
Power, W:
180 Вт
Efficiency:
77 л/час
Connection diameter:
1/2
Connection type:
Наружная резьба
Suction depth:
3 м
Plunger diameter:
30 мм
The range of regulation:
0-100 %
The length of the piston stroke:
15 мм
Permissible water temperature:
+4..+40°C
Weight, kg
10 kg
Height, mm:
335 мм
Length, mm:
158 мм
Width, mm:
355 мм
Type of pump:
Аналоговый
Pump design type:
Плунжерный
Dosage regimen:
Постоянный
Type of performance adjustment:
Ручная
Working pressure (max), bar:
10 бар
Protection class:
IP55
Operating temperature:
0..+90°C
Supply voltage, V:
230, 400 В
