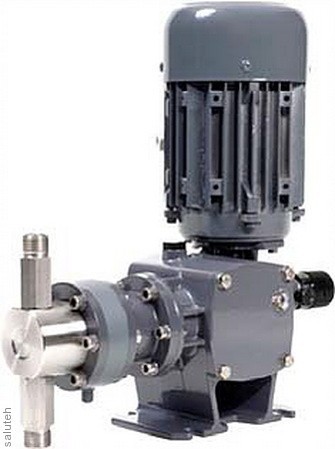

Plunger metering pumps ST P-BI. Standard version: AA configuration: pump head — PVC, plunger — n/st AISI 316l. Capacity: 18-39 l/h, back pressure up to 10 bar.
Dosage regimen: Constant ON-OFF.
Type of management: The pump performance is regulated using a micrometer knob that controls the stroke length of the plunger. Performance adjustment can be carried out while the pump is running.
Display: No.
Indication: No.
Level sensor support: Optional.
Features
Brand
Etatron
Model
ST-P BI
Housing material:
Алюминий
Number of pulses:
120 имп/мин
Power, W:
180 Вт
Efficiency:
18 л/час
Connection diameter:
3/4
Connection type:
Наружная резьба
Suction depth:
3 м
Plunger diameter:
18 мм
The range of regulation:
0-100 %
The length of the piston stroke:
15 мм
Permissible water temperature:
+4..+40°C
Weight, kg
10 kg
Height, mm:
335 мм
Length, mm:
158 мм
Width, mm:
355 мм
Type of pump:
Аналоговый
Pump design type:
Плунжерный
Dosage regimen:
Постоянный
Type of performance adjustment:
Ручная
Working pressure (max), bar:
10 бар
Protection class:
IP55
Operating temperature:
0..+90°C
Supply voltage, V:
230, 400 В
