Main application areas
- Polluted water
- Dewatering by pressing
- Equipment for buildings
- Treatment plants
- Waste water
- Installations for lifting drains

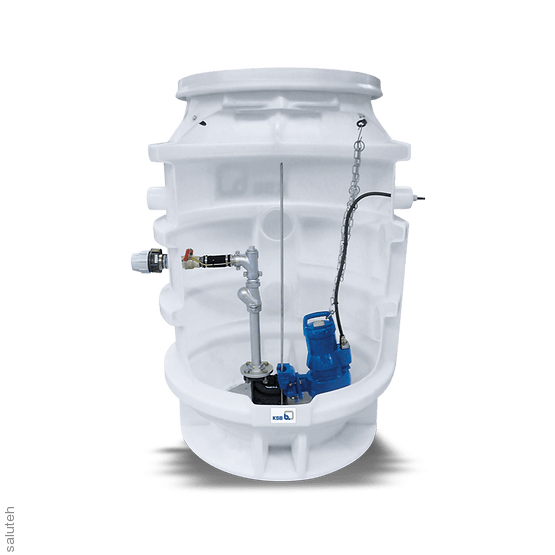

Ready-to-connect single or double pump station with check-
made of PE-LLD polyethylene for installation buried in the ground. With one
or two submersible pumps for contaminated water Ama®-Porter without
explosion protection. Shaft design according to DIN 1986-100 and EN 752/EN 476.
Automation
control cabinets and LevelControl.
Scope of application: rehabilitation of land plots, wastewater disposal in various applications, collective sewerage system of several residential facilities, water drainage under pressure.
Overview of technical data
| Q (50Hz) | 0.0 – 40.0 (m³/h) |
| H (50Hz) | 0.0 – 16.0 (m) |
| Type of bearing | ball bearing |
| Drive motor frequency | 50 Hz |
| Type of drive | electric motor |
| Drive motor voltage | low voltage |
| Explosion protection | WITHOUT |
| Explosion protection | WITHOUT |
| Impeller material (according to E standard | JL1030 |
| Type of coupling | directly |
| Type of lubricant | lubrication of the pumped medium |
| Max. permissible liquid temperature | 40 (°C) |
| Max. number of pumps | 2 |
| Type of connection | terminal connection |
| Housing material (according to EN standard) | PUMPE JL1030 |
| Max. free passage | 60 (mm) |
| Installation position | vertical |
| Type of shaft seal | mechanical seal |
| Main application areas | Water supply, wastewater, Building engineering equipment |
| Housing material | grey cast iron |
| Max. drive power | 1,50 (kW) |
| Type of installation | stationary, located in the ground |
| Max. rotation speed | 2900 |
