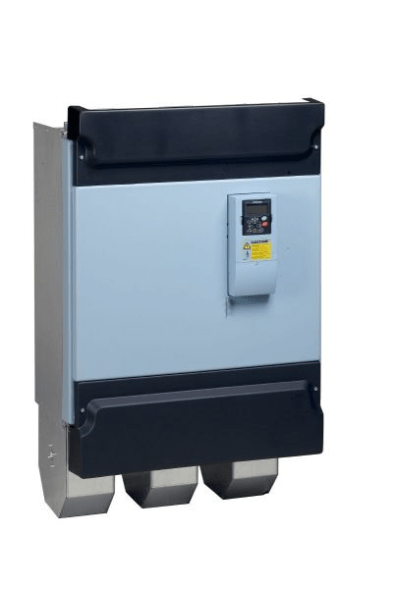

Frequency converter Vacon NXP It is specially designed for applications where it is necessary to combine high precision and control dynamics with high equipment power. Due to the high reliability and quality of management, the resource of the entire system increases.
Construction Vacon NXP provides effective protection against disturbances of the supply network.
Modular design Vacon NXP it has a number of advantages:
Modular design Vacon NXP it has a number of advantages:
- the power and control circuits of the converter are separated
- The configuration of inputs and outputs is easily changed (up to five interface expansion boards can be installed)
- The cooling fan is easily replaceable
- The removable control panel can be used to copy parameters, etc.
Application:
- Elevators, elevators, cranes
- Pulp and paper industry
- Complex mechanisms with synchronization and positioning
- Control of a group of pumps, fans (PID controller)
Brief technical specifications:
- Power:
- 3~220 V – 0.37...90 kW
- 3~380/500 V – 0.75...400 kW
- 3~660 V – 2.2...800 kW
- Overload capacity up to 150%
- Output frequency 0...320 Hz, up to 7200 Hz with special software
Management method:
- scalar (U/f)
- vector with an open loop (without sensor)
- vector closed loop (with sensor)
The degree of protection of the case:
- IP 00 (standard size FR10-FR12)
- IP 21 (standard size FR4-FR11)
- IP 54
- Built-in three-phase AC choke (IP21)
- Built-in EMC filter (IP21)
- The ability to program and copy parameters without applying mains voltage
- Motor protection against short circuit, overload, underloading, jamming
- The possibility of starting with the determination of the direction and speed of rotation of the engine
- Direct current and flow braking
- Auto-tuning function
- Number of analog/digital inputs/outputs as standard: 2AI/6DI 1AO/1DO/2R
- All inputs/outputs are freely programmable
- The possibility of using incremental and absolute encoders, as well as resolvers.
