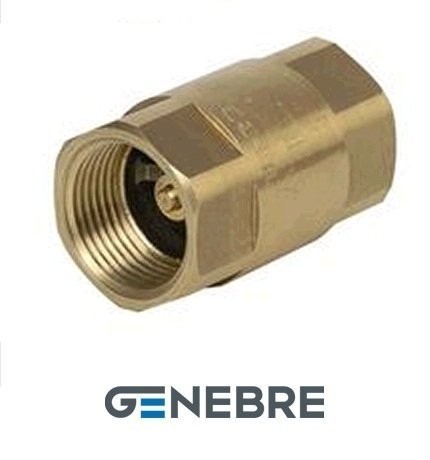

GENEBRE full-bore check valve, body-brass, seal-NBR, Tmax=110°C BP/BP

Art. 3122 Check valve brass chrome-plated threaded, Genebre - act as a necessary element to prevent the flow from moving in the opposite direction. It has a one-piece body made of forged brass.

Stainless steel is the main material from which the spring is made.

The crane has a wide range of temperature parameters for different working environments:

air: -20 – +110 ºC

Water: 0 – +90 ° C

Gas: -20 – +60 °C

The outer surface of the crane is chrome-plated, has been mechanically processed. The crane model can be used in both vertical and horizontal positions.

Working pressure: PN25/12

Diameter: from DN15 to DN100

Body material: chrome-plated brass

Connection type: internal thread/internal thread
Design feature of the model: NBR seal
