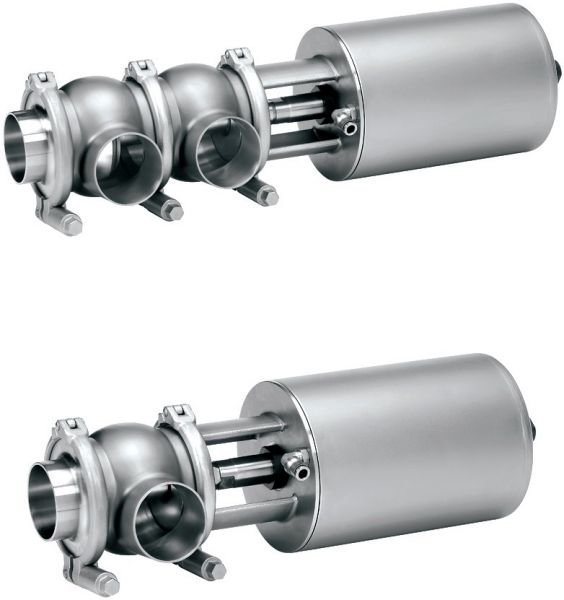

A new generation of valves Alfa Laval Unique SSV tangential meets the highest hygiene and safety requirements. It is designed on the well-developed Unique SSV platform and provides a complete drain from the valve body on horizontally mounted valves. It can be configured as a shut-off valve with two (2) or three (3) nozzles, or as a distribution valve with three (3) to five (5) nozzles.
This is a pneumatic seat valve of hygienic and modular design with remote control using compressed air.. It has a small number of simple moving parts, which makes it very reliable and does not require expensive maintenance.
Temperature
Temperature range: . . . . . . . . . . . . -10°C to +140°C (EPDM)
Pressure
Макс. давление продукта: . . . . . . . . . . 1000 kПа (0,10 бар)
Min. product pressure: . . . . . . . . . . . Full vacuum
Air pressure: . . . . . . . . . . . . . . . from 500 to 700 kPa (from 5 to 7 bar)
