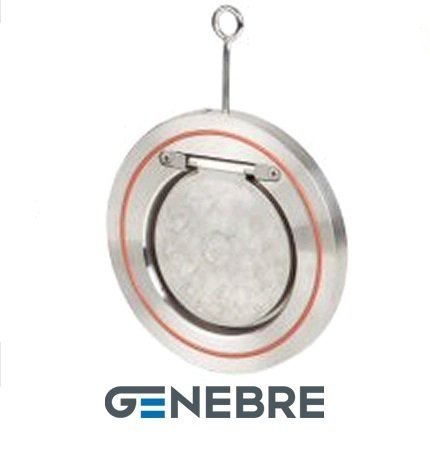

2406 Check valve. Genebre, CF8M/CF8M/Viton, Tmax=+180oC flanged
The check valves being implemented are compact devices made of stainless steel and designed to block the return flow. They are used in heat supply because they withstand temperatures of -25 – +180 ° C.
These devices are used where minimal pressure loss is required. The thickness of the valve assembly is only 14-22 mm (depending on the modification). The fairly simple design of the device includes:
- compact housing;
- overlapping disk;
- bolt axis;
- the stopper.
All the listed elements are made of high-quality AISI 316 stainless steel, which makes the device reliable and durable. In addition, the outer and disc gaskets are made of Viton (FKM), which ensures tightness.
In the company's catalog, it is easy to select such valves for a pipeline with a diameter of 2 to 10 inches. Regardless of the size, the product perfectly withstands
Features
Brand
Genebre
