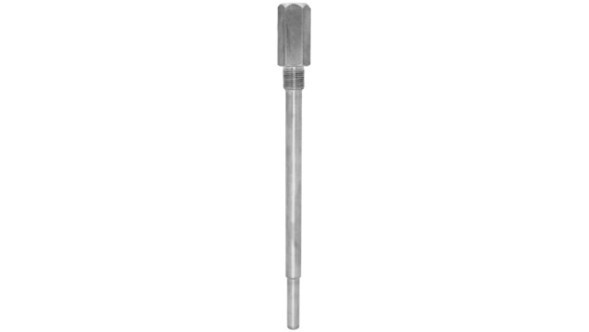

The Omnigrad TA562-1ALUMB43A0 thermocouple

Thermowell made of all-metal billet to protect the thermometer from mechanical and corrosive environmental influences.

For use in harsh industrial conditions, it is necessary to calculate the strength characteristics of the thermowell. The quality of the finished product is checked by non-destructive testing of the output control: penetrating dye (quality of welds), ultrasonic flaw detection (presence of microcracks), tests for helium leakage and static pressure (integrity and tightness of the structure).

Advantages

• The submerged part of the thermowell can be straight or stepped to reduce the response time.
• The dimensions of the thermowell can be selected in accordance with the process requirements.
• Versions with varying degrees of surface polishing are available.
• A wide range of threaded process connections are available: 1/2"NPT, ¾”NPT, G1/2”, G3/4”, M20x1.5.
• A wide range of standard materials are available.
• It is possible to manufacture special designs
