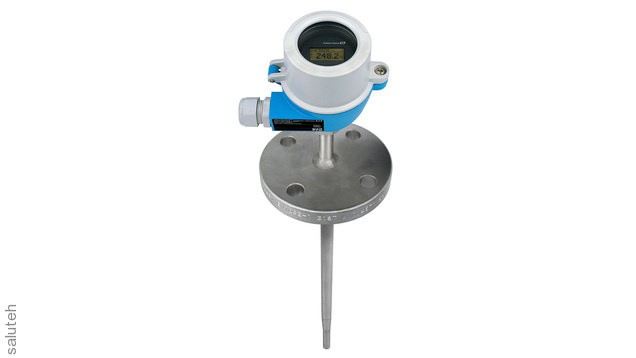

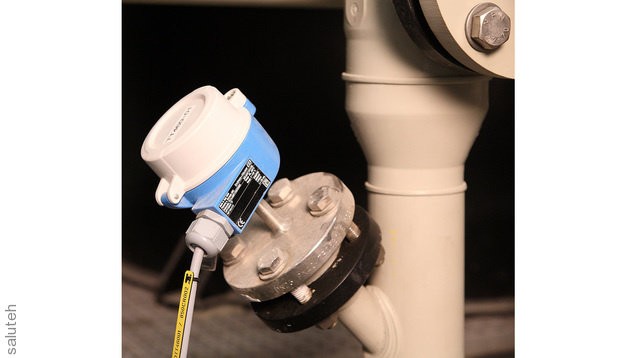

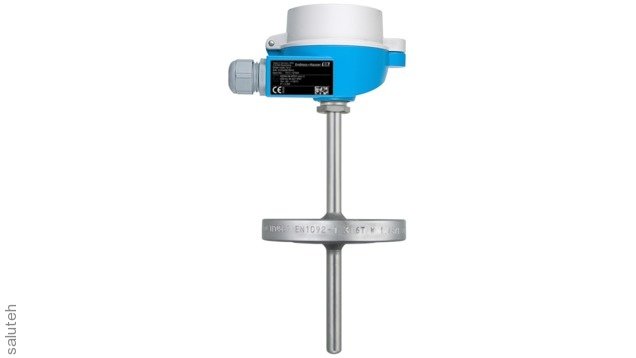

The Omnigrad M TC13 thermocouple
The TC13 universal thermocouple is designed for applications in all industries.
To increase the reliability of temperature measurement, the thermocouple is optionally equipped with a normalizing converter with various types of data transmission puncture (4/20ma, HART, Profibus PA, FOUNDATION Fieldbus).
The various process connections and materials of the wetted parts ensure versatility of application.
Specifications:
- Principle of measurement Thermocouple
- Characteristics /Application Modular temperature sensor
- Universal application
- It is applicable in explosive zones
- Flanged connections to the process
- Without a neck
- Incl. metal protective thermowell
- The pin connector TA20A - aluminum - screw cap
- TA20B - plastic - threaded cover
- TA20D - aluminum - high hinged lid
Features
Максимальная глубина погружения
до 3700 мм
Рабочие температуры
0...+1100 °С
Диаметр трубки, мм
9, 11, 12
Power Supply, In
~ 400V AC
Degree of IP protection
IP65/67
Weight, kg
1.5 - 3.5 кг
Brand
Endress Hauser
