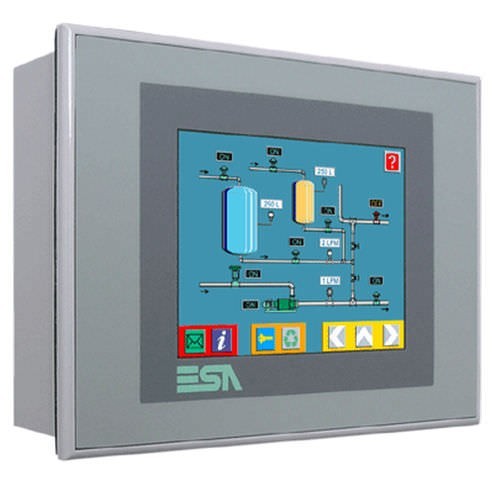

ESA VT525W000DP Panel Restored

VT525W Series Operator Touch Panels the company ESA Automation designed for easy and visual interaction with a wide range of devices such as programmable logic controllers of various profiles, frequency converters and other components of the automation system of production processes. This is a high-tech and reliable solution, all products of this line are certified and meet the highest quality requirements.

Support for popular network protocols with high data transfer rates, built-in switching connectors for direct connection of MPI devices, the use of two drivers simultaneously, all this allows you to quickly and easily configure various types of slave equipment in a convenient graphical interface. For internal communication, an ESA-Net network connection is used, through which up to 32 panels can be combined into a single visualization system, where each unit is able to output any queries regarding the connected equipment.

The VT525W model has a 5.7-inch color LCD screen for displaying information, with which the operator can configure parameters for monitoring, receive signals from connected device systems, work with graphic files, use built-in industrial communication protocols and other features that simplify programming tasks in the control system. The panel can be installed both horizontally and vertically.

Technical characteristics of the operator panel ESA Automation VT525W series:

• Display Type: liquid crystal (STN), 16 colors;
• Permission: 320 x 240 (5.7 inches);
• The matrix: 20 x 16;
• Cell size: 16 x 12 pixels;
• The backlight: CCFL lamp, 50000 hours service life;
• Memory: 960 KB (project), 32 KB (recipes), 8 KB (alarm);
• Interfaces: RS-232/422/485/TTY 20 мА (порт MSP), RS-232 8-контактный (порт ASP), опционально Profibus-DP, CAN, Ethernet 10/100;
• Food: from 18 to 32 V /10 W;
• Operating temperature range: up to 50 °C;
• Protection class: IP 65;
• Dimensions: 210 x 158 x 54 (mm), weight 1.4 kg.

Custom codes of the operator panels of the ESA Automation VT525W series:

You can buy VT525W series operator touch panels manufactured by ESA Automation, find out the price and more information about the product by contacting our specialists.
