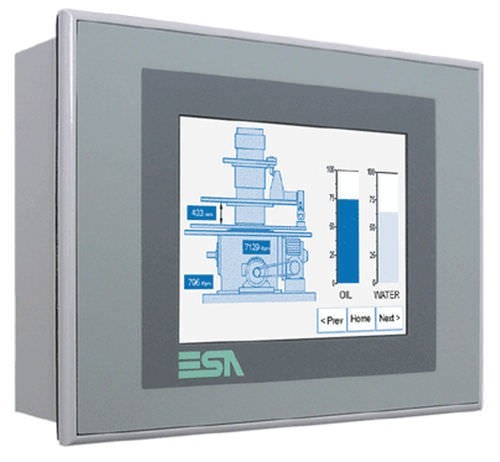

Operator panel 5.7", 4 ott.syn., MSP ESA VT505W00000

VT505W Series Remote Control Touch Terminals the company ESA Automation designed for easy and visual interaction with a wide range of devices such as programmable logic controllers of various profiles, frequency converters and other components of the automation system of production processes. This is a high-tech and reliable solution, all products of this line are certified and meet the highest quality requirements.

Support for popular network protocols with high data transfer rates, built-in switching connectors for direct connection of MPI devices, the use of two drivers simultaneously, all this allows you to quickly and easily configure various types of slave equipment in a convenient graphical interface. For internal communication, an ESA-Net network connection is used, through which up to 32 panels can be combined into a single visualization system, where each unit is able to output any queries regarding the connected equipment.

The VT505W model has a 5.7-inch monochrome LCD screen for displaying information, with which the operator can configure parameters for monitoring, receive signals from connected device systems, work with graphic files, use built-in industrial communication protocols and other features that simplify programming tasks in the control system. The panel can be installed both horizontally and vertically.

Technical Characteristics of ESA Automation VT505W series remote control terminals:

• Display Type: graphic LCD (STN), monochrome;
• Permission: 320 x 240 (5.7 inches);
• The matrix: 20 x 16;
• Cell size: 16 x 15 pixels;
• The backlight: CCFL lamp, service life 45000 hours;
• Memory: 512 KB (draft), 16 KB (formulation), 8 KB (alarm);
• Interfaces: RS-232/422/485/TTY 20 мА, Ethernet, CAN, Profibus-DP CAN, Interbus-S, CAN;
• Food: from 18 to 32 V /10 W;
• Operating temperature range: up to 50 °C;
• Protection class: IP 65;
• Dimensions: 210 x 158 x 54 (mm), weight 1.4 kg.

Custom codes of remote control terminals ESA Automation VT505W series:

You can buy VT505W series remote control terminals manufactured by ESA Automation, find out the price and more information about the product by contacting our specialists.
