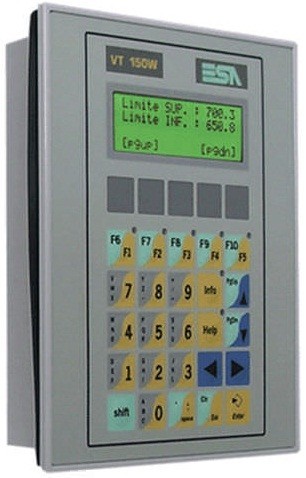

VT150W Series Control Terminals the company ESA Automation designed for easy and visual interaction with a wide range of devices such as programmable logic controllers of various profiles, frequency converters and other components of the automation system of production processes. This is a high-tech and reliable solution, all products of this line are certified and meet the highest quality requirements.
Support for popular network protocols with high data transfer rates, built-in switching connectors for direct connection of devices, the use of two drivers at the same time, all this allows you to quickly and easily configure various types of slave equipment in a convenient graphical interface. For internal communication, an ESA-Net network connection is used, through which up to 32 panels can be combined into a single visualization system, where each unit is able to output any queries regarding the connected equipment.
The VT150W model has an 80-line monochrome LCD screen for displaying information, with which the operator can configure parameters for monitoring, receive signals from connected device systems, work with graphic files, use built-in industrial communication protocols and other features that simplify programming tasks in the control system. The panel can be installed both horizontally and vertically.
Technical characteristics of the control terminals of the ESA Automation VT150W series:
- Display Type: text LCD;
- Display backlight type: LED backlight (LED);
- Display size: 70.4 x 20.8 (mm);
- Number of display lines: 80;
- Cell size: 5 x 7 pixels;
- Memory: 256 KB (project);
- Interfaces: RS - 232/422/485/TTY 20 mA, Profibus-DP, Interbus-S, CAN, DP;
- Food: from 18 to 32 V /15 W;
- Operating temperature range: up to 50 °C;
- Protection class: IP 65;
- Dimensions: 148 x 188 x 41 (mm), weight 0.7 kg.
Custom codes of the ESA Automation control terminals of the VT150W series:
Code | Built-in interfaces |
VT150W 00000 | MSP |
VT150W 000DP | MSP, network Profibus-DP |
| VT150W A00CN | ASP8, network CAN |
You can buy VT150W series control terminals manufactured by ESA Automation, find out the price and more information about the product by contacting our specialists.
