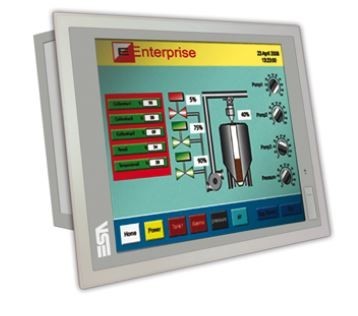

XS715 Series Industrial Touch Screen PCs the company ESA Automation They are designed to interact with a wide range of devices such as programmable logic controllers of various profiles, frequency converters and other equipment in industrial process automation systems at the enterprise. It is also important to note that industrial PCs with XS series touchscreens are high-tech and reliable solutions, as they have been certified and meet all the requirements of safety and quality standards.
Support for basic network protocols with high data transfer rates, built-in switching connectors for direct connection of devices, allows you to configure various types of slave equipment through a user-friendly graphical interface. In case of production necessity, it is possible to combine several monitors into a single visualization system, where each monitor transmits all the necessary operational data in enterprises and production related to the connected equipment.
The XS715 model has a large 15-inch color LCD screen for displaying information, with which the operator can configure parameters for monitoring, receive signals from connected device systems, work with graphic files, use built-in industrial communication protocols and other features that simplify programming tasks in the control system. To work in harsh operating conditions, the company ESA Automation It produces similar models of industrial PCs with touchscreens marked INOX in a metal, dust and moisture-proof housing.
Technical characteristics of the ESA Automation operator panel of the XS715 series:
- Display Type: Graphic LCD (TFT), 16.7 million colors;
- Permission: 1024 x 768 (15 inches);
- The backlight: LED (LED), the service life of 50,000 hours;
- Random access memory: 16 to 32 GB DDR3 1066/1333/DDR4 1866/2133 MHz;
- Hard drive capacity: 500 GB SATA 2.5" /SSD 16 GB;
- Processor Type: Intel Celeleron (B810 1.6/G3900TE 2,6 ГГц), Core i3 (2330E 2.2/6100TE 2,7ГГц), Core i5 (2510E 2.5/6500TE 2,3 ГГц), Core i7 (2710QE 2.1/6700TE 2,4 ГГц);
- Type of chipset: QM67PCH /Q170;
- System bus frequency: from 5 to 8GT/s (gigatransactions per second);
- Interfaces: Ethernet 10/100/1000 (2x 1Gb RJ45 Intel 82579LM /Realtek RTL8111DL, 2x 1Gb RJ45 Intel I210AT /I219LM);
- Food: from 18 to 30 V /75 W;
- Operating temperature range: up to 50 °C;
- Protection class: IP 66;
- Dimensions: 425 x 300 x 85.5 (mm).
To buy industrial touch-screen PCs of the XS715 series manufactured by ESA Automation, you can find out the price and more information about the product by contacting our specialists.
