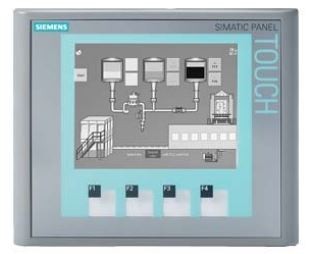

Control and control panels SIEMENS The Simatic KTP400 Basic Mono series have found their wide application in tasks for solving automatic (system) management and monitoring, in almost any industry, largely due to the ability to view HTML documents through Microsoft Pocket Internet Explorer. At the same time, the Microsoft Windows CE operating system, installed with the Simatic KTP400 Basic Mono series control panels, fully meets the standard operating requirements under maximum load conditions, and also allows you to install additional software for operation. Due to the use of this particular version of the operating system, the panel manufacturer SIEMENS It was possible to eliminate the integration of the hard disk and the fan, so that there are no risks of strong vibration and shock loads during daily operation, which are categorically unacceptable for industrial computers (PCs). An additional advantage of multifunctional panels is their quick start and ready to work immediately after power is turned on. As a rule, the control and control panels of the Simatic KTP400 Basic Mono series can be equipped with both a touch screen and a special (membrane) keyboard.
You can buy brand control and control panels SIEMENS Simatic series KTP400 Basic Mono in our company, on the issue of selection, please contact our engineers by phone saluteh or email saluteh.
Technical characteristics of SIEMENS Simatic KTP400 Basic Mono series control and control panels:
- Screen Type: Graphic LCD (TFT);
- Screen diagonal: up to 3.8 inches;
- Number of colors: up to 16 million;
- Screen Resolution: 320 x 240 dpi;
- Screen life: up to 30,000 hours;
- Type (device) of data entry: touch panel;
- Touch Screen Type: analog/resistive;
- Supply voltage: up to 24 V;
- The range of permissible voltages: from 19.2 to 28.8 V;
- Current consumption: up to 0.1 A;
- Power consumption: up to 3 watts;
- Number of switchable languages: until 23;
- Number of supported languages: until 23;
- Memory (RAM): up to 1 MB;
- Type of CPU: RISC 32-bit;
- Configuration software: Microsoft WinCC Basic (Comfort, Advanced, Professional), STEP 7 Basic, STEP 7 Professional;
- Supported (data download) protocols: MODBUS, PROFINET, EtherNet/IP;
- Protection classes: IP20 (rear panel), IP65 (front panel);
- Operating temperature range: up to 50 °C;
- Temperature regime for transportation: -20 to 60 °C;
- Weight: up to 0.32 kg.
