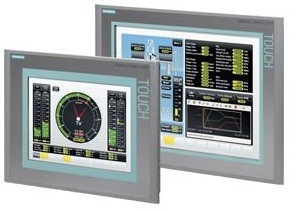

The company's control and control panels SIEMENS The Simatic MP 177 series (6AV6642-0EA01-3AX0) are designed for operators in industrial and manufacturing enterprises, for precise control and control of automation system workflows. One of the main features of the MP 177 series panels (6AV6642-0EA01-3AX0) is software compatibility for installing additional applications and software packages related to production. It is also important to note that the absence of components such as hard drives and a fan indicates the reliability of these panels, in those operating conditions where there are serious restrictions on the use of PCs, due to possible vibration or dustiness of the latter. Memory management in the panel ensures that all important controller data is saved when the power is turned off. Control and Control Panel SIEMENS The Simatic MP 177 series (6AV6642-0EA01-3AX0), operates on the basis of the Microsoft Windows CE operating system and at the same time combines the operational functionality and reliability of operator panels, as well as high performance in the form of high computing power of working PCs.
You can buy brand control and control panels SIEMENS Simatic MP 177 series (6AV6642-0EA01-3AX0) in our company, on the issue of selection, please contact our engineers by phone saluteh or email saluteh.
Technical specifications of SIEMENS Simatic MP 177 series control and monitoring panels (6AV6642-0EA01-3AX0):
- Screen Type: Graphic LCD (TFT);
- Screen diagonal: 5.7 inches;
- Number of colors: up to 65536;
- Screen Resolution: 320 x 240 dpi;
- Screen life: up to 50,000 hours;
- Type (device) of data entry: touch panel;
- Touch Screen Type: analog/resistive;
- Supply voltage: up to 24 V;
- Number of switchable languages: up to 16;
- Number of supported languages: up to 22;
- Memory (ROM): 2 MB;
- Type of CPU: RISC 32-bit;
- Processor clock speed: up to 520 MHz;
- Type of operating system: Microsoft Windows CE (V5);
- Configuration software: Microsoft WinCC Standard 2008;
- Additional applications and utilities: Soft PLC, SmаrtService, SmаrtAccess;
- Types of supported protocols: RS422, RS485, Ethernet (RJ45), USB, Multi Media Card;
- Data download protocols: Ethernet, USB, DP, MPI /PROFIBUS;
- Protection classes: IP20 (rear panel), IP65 (front panel);
- Operating temperature range: up to 50 °C;
- Temperature regime for transportation: -20 to 70 °C;
- Dimensions of the front panel: 212 x 156 mm;
- Dimensions for installation: 198 x 142 x 45 mm;
- Weight: up to 0.85 kg.
